LAN8720A-CP-TR-ABC - Microchip

Description: Ethernet ICs Small Footprint RMII RMII 10/100 Ethernet

Download LAN8720A-CP-TR-ABC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

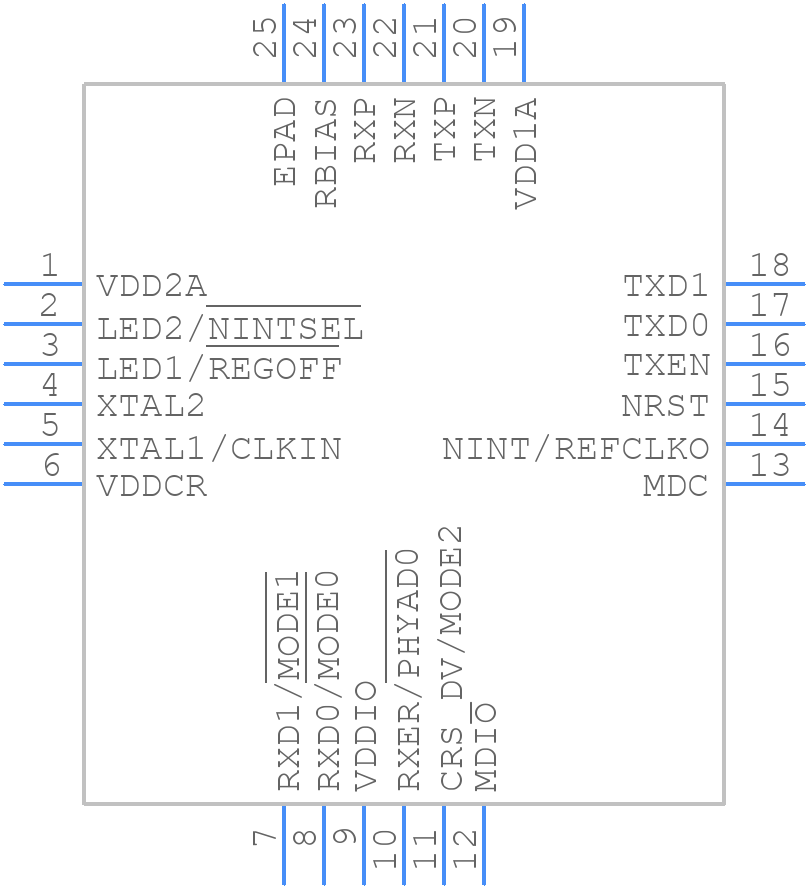

LAN8720A-CP-TR-ABC - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8720A-CP-TR-ABC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Pin QFN
click to zoom
3D Models
LAN8720A-CP-TR-ABC - Microchip - 3D model - Quad Flat No-Lead - 24 Pin QFN
click to zoom

LAN8720A-CP-TR-ABC Details

  • Manufacturer Part Number:

    LAN8720A-CP-TR-ABC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LAN8720A-CP-TR-ABC Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LAN8720A-CP-TR-ABC can be found in the Microchip application note AN-2054, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and signal integrity.
  • The LAN8720A-CP-TR-ABC can be configured for half-duplex or full-duplex operation through the use of external resistors and capacitors. The specific configuration depends on the application and can be found in the datasheet or through consultation with Microchip technical support.
  • The maximum cable length supported by the LAN8720A-CP-TR-ABC is 100 meters, which is the standard for Ethernet cables. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • Troubleshooting issues with the LAN8720A-CP-TR-ABC typically involves checking the power supply, clock signal, and data transmission lines. Engineers can also use tools such as oscilloscopes and logic analyzers to debug the issue. Microchip technical support is also available to assist with troubleshooting.
  • Yes, the LAN8720A-CP-TR-ABC is compatible with industrial temperature ranges, operating from -40°C to 85°C. However, the device may require additional thermal management and design considerations for extreme temperature applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8720A-CP-TR-ABC Overview

Use the download button to access the LAN8720A-CP-TR-ABC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
