LAN8720AI-CP-ABC - Microchip

Description: Microchip LAN8720AI-CP-ABC Ethernet Transceiver, IEEE802.3/802.3u, ISO 802-3/IEEE802.3, 100Mbit/s 3.3 V, 24-Pin QFN

Download LAN8720AI-CP-ABC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

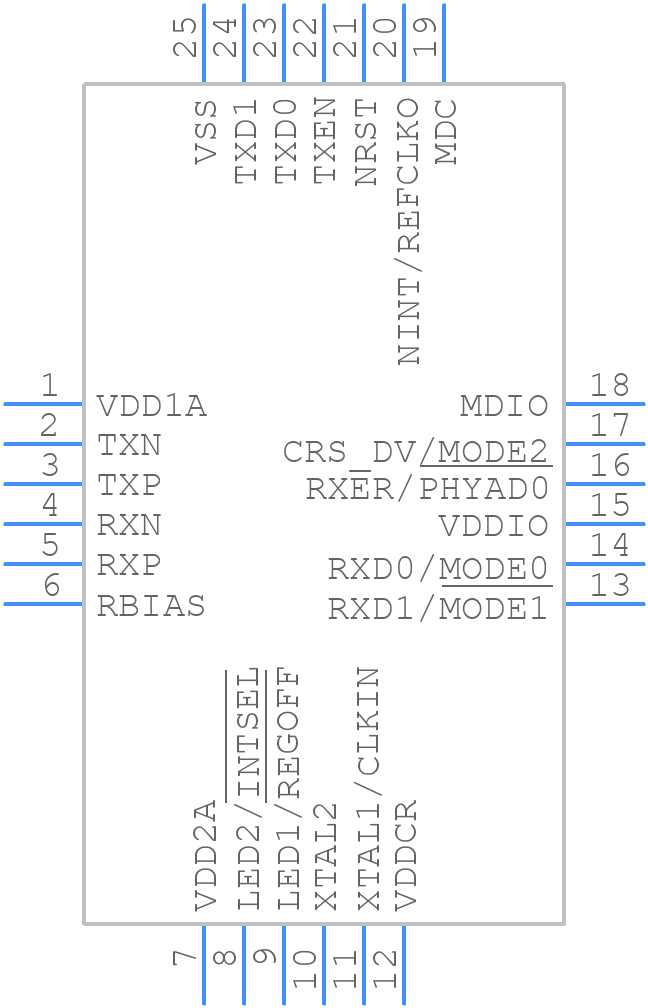

LAN8720AI-CP-ABC - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8720AI-CP-ABC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Pin QFN
click to zoom
3D Models
LAN8720AI-CP-ABC - Microchip - 3D model - Quad Flat No-Lead - 24 Pin QFN
click to zoom

LAN8720AI-CP-ABC Details

  • Manufacturer Part Number:

    LAN8720AI-CP-ABC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Date Of Intro:

    2016-06-24

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LAN8720AI-CP-ABC Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in their application note AN-2054, which includes guidelines for component placement, routing, and thermal management.
  • The LAN8720AI-CP-ABC can be configured for different PHY modes (e.g., 10BASE-T, 100BASE-TX, 1000BASE-T) using the device's strap pins or through software control using the MDIO interface. Refer to the datasheet and application notes for specific configuration details.
  • The LAN8720AI-CP-ABC supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX modes, and up to 200 meters for 10BASE-T mode, assuming a Category 5e or higher cable.
  • Microchip provides a troubleshooting guide in their application note AN-2055, which covers common issues and debugging techniques for the LAN8720AI-CP-ABC. Additionally, engineers can use tools like oscilloscopes and protocol analyzers to diagnose issues.
  • While the LAN8720AI-CP-ABC is primarily designed for Ethernet applications, its PHY and MAC layers can be used in other applications that require high-speed serial communication. However, this would require custom firmware development and may not be supported by Microchip.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8720AI-CP-ABC Overview

Use the download button to access the LAN8720AI-CP-ABC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces
