LAN8740A-EN - Microchip

Description: Ethernet Transceiver,MII/RMII 10/100,QFN LAN8740A-EN, Ethernet Transceiver IEEE 802.3, IEEE 802.3az, IEEE 802.3u 100Mbit/s 3.3 V, 32-Pin SQFN

Download LAN8740A-EN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

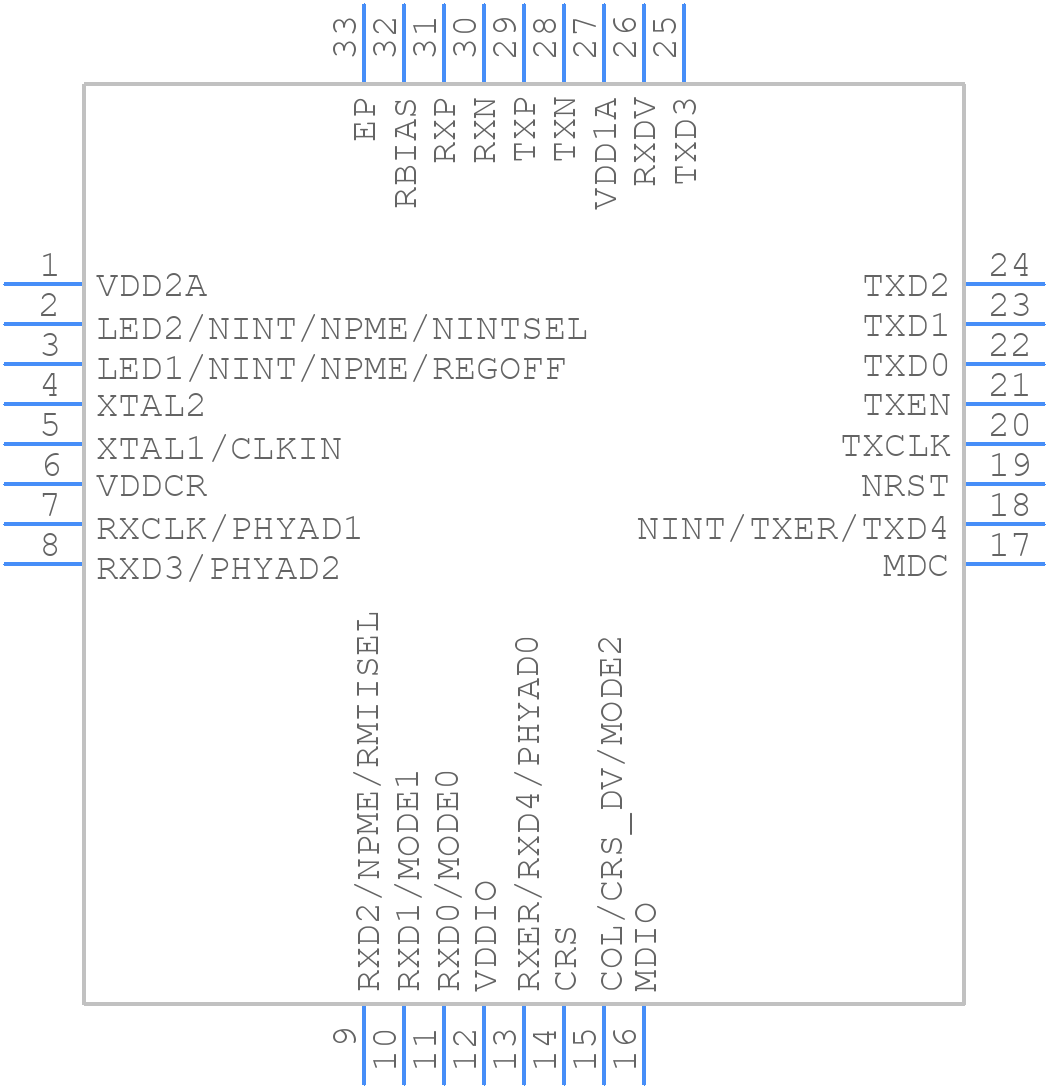

LAN8740A-EN - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8740A-EN - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SQFN
click to zoom
3D Models
LAN8740A-EN - Microchip - 3D model - Quad Flat No-Lead - SQFN
click to zoom

LAN8740A-EN Details

  • Manufacturer Part Number:

    LAN8740A-EN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    QFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LAN8740A-EN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the LAN8740A-EN evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The LAN8740A-EN can be configured for different PHY modes using the strap pins or through software control using the MDIO interface. Refer to the datasheet for specific pin configurations and register settings.
  • The LAN8740A-EN supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • Microchip provides a troubleshooting guide in the LAN8740A-EN datasheet, which includes steps for debugging common issues such as link failures, packet loss, and PHY configuration errors.
  • The LAN8740A-EN is designed to support standard Ethernet protocols such as IEEE 802.3. While it may be possible to use the device with non-standard protocols, Microchip does not provide support or guarantee compatibility for non-standard protocols.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8740A-EN Overview

Use the download button to access the LAN8740A-EN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces
