- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LAN8742A-CZ-TR
- Part Number LAN8742A-CZ-TR
- Manufacturer Microchip
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-Pin SQFN
- Released Date Apr 5, 2016
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LAN8742A-CZ-TR Details
-
Manufacturer Part Number:
LAN8742A-CZ-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
24
-
Manufacturer Package Code:
QFN-24
-
Country Of Origin:
Taiwan, Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
3 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
13
LAN8742A-CZ-TR Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout guide in the LAN8742A-CZ-TR evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management.
-
The LAN8742A-CZ-TR can be configured using the Microchip LANCheck configuration tool, which provides a graphical user interface for setting up Ethernet protocols, VLANs, and other features.
-
The LAN8742A-CZ-TR supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard for Ethernet over twisted pair cables.
-
Microchip provides a troubleshooting guide for the LAN8742A-CZ-TR, which includes steps for identifying and resolving common issues, as well as using diagnostic tools such as packet sniffers and network analyzers.
-
Yes, the LAN8742A-CZ-TR is designed to meet the requirements of industrial and automotive applications, with features such as extended temperature range, high reliability, and electromagnetic compatibility (EMC).
Trust Checks
Community Provided
System Verified
Community Approved
LAN8742A-CZ-TR Overview

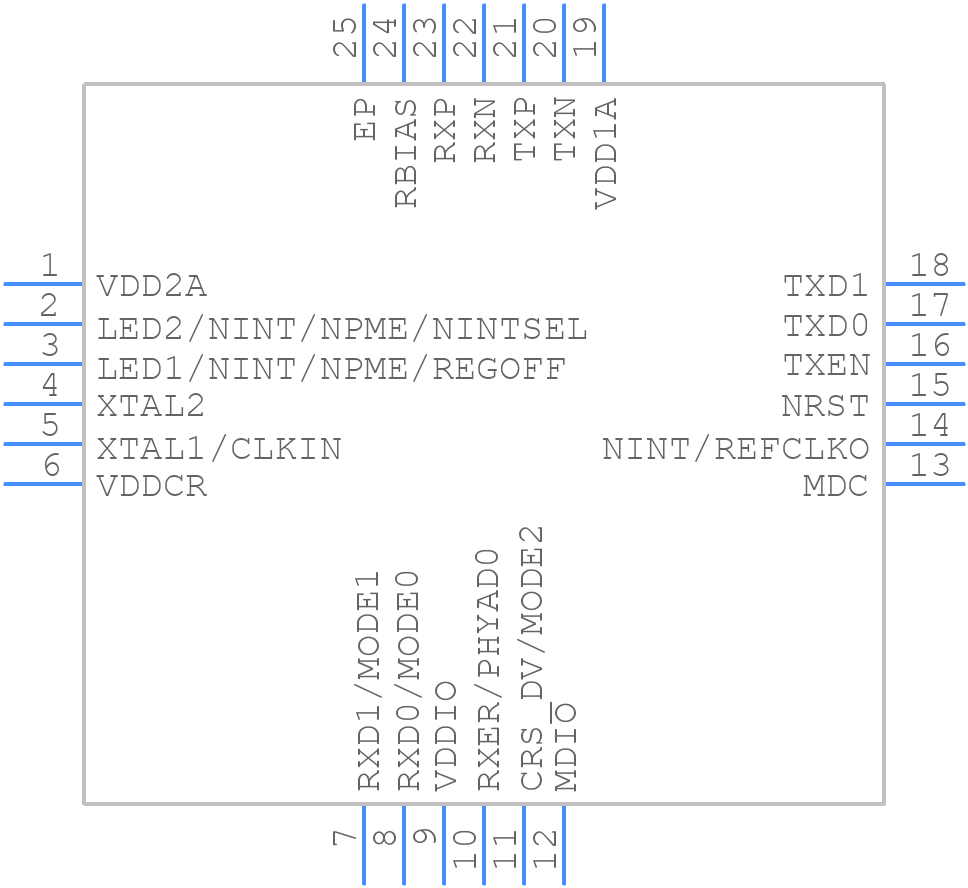

Use the download button to access the LAN8742A-CZ-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87,
or try a keyword search, such as Network Interfaces
