Part Image

LAN8742AI-CZ-TR - Microchip

Description: MICROCHIP - LAN8742AI-CZ-TR - ENET TX RX, 100MBPS, -40 TO 85DEG C

Download LAN8742AI-CZ-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

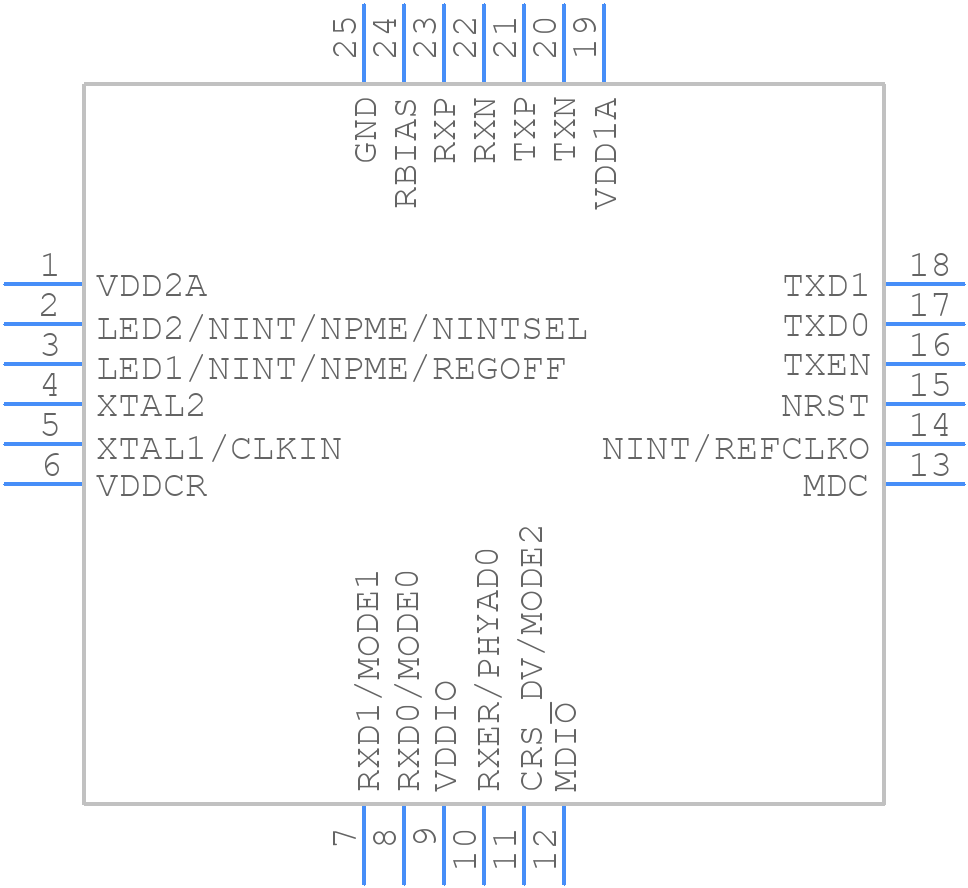

LAN8742AI-CZ-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8742AI-CZ-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LAN8742AI-CZ-TR
click to zoom
3D Models
LAN8742AI-CZ-TR - Microchip - 3D model - Quad Flat No-Lead - LAN8742AI-CZ-TR
click to zoom

LAN8742AI-CZ-TR Details

  • Manufacturer Part Number:

    LAN8742AI-CZ-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

LAN8742AI-CZ-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in their application note AN2054, which includes guidelines for component placement, routing, and thermal management.
  • The LAN8742AI-CZ-TR can be configured using the Microchip LANCheck online tool or the LAN8742AI-CZ-TR evaluation board. The tool provides a graphical user interface to configure the device for different network topologies, such as 10/100/1000 Mbps Ethernet, and saves the configuration to the device's EEPROM.
  • The LAN8742AI-CZ-TR supports cable lengths up to 100 meters for 10/100 Mbps and up to 40 meters for 1000 Mbps, as per the IEEE 802.3 standard.
  • Microchip provides a troubleshooting guide in their application note AN2055, which covers common issues, such as link failures, packet loss, and PHY register settings. Additionally, the LAN8742AI-CZ-TR evaluation board provides a debug interface for real-time monitoring and debugging.
  • Yes, the LAN8742AI-CZ-TR is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8742AI-CZ-TR Overview

Use the download button to access the LAN8742AI-CZ-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
