LAN8742AI-CZ - Microchip

Description: Microchip LAN8742AI-CZ Ethernet Transceiver, IEEE 802.3, IEEE 802.3u, 10 Mbps, 100 Mbps 1.62 → 3.6 V, 24-Pin SQFN

Download LAN8742AI-CZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

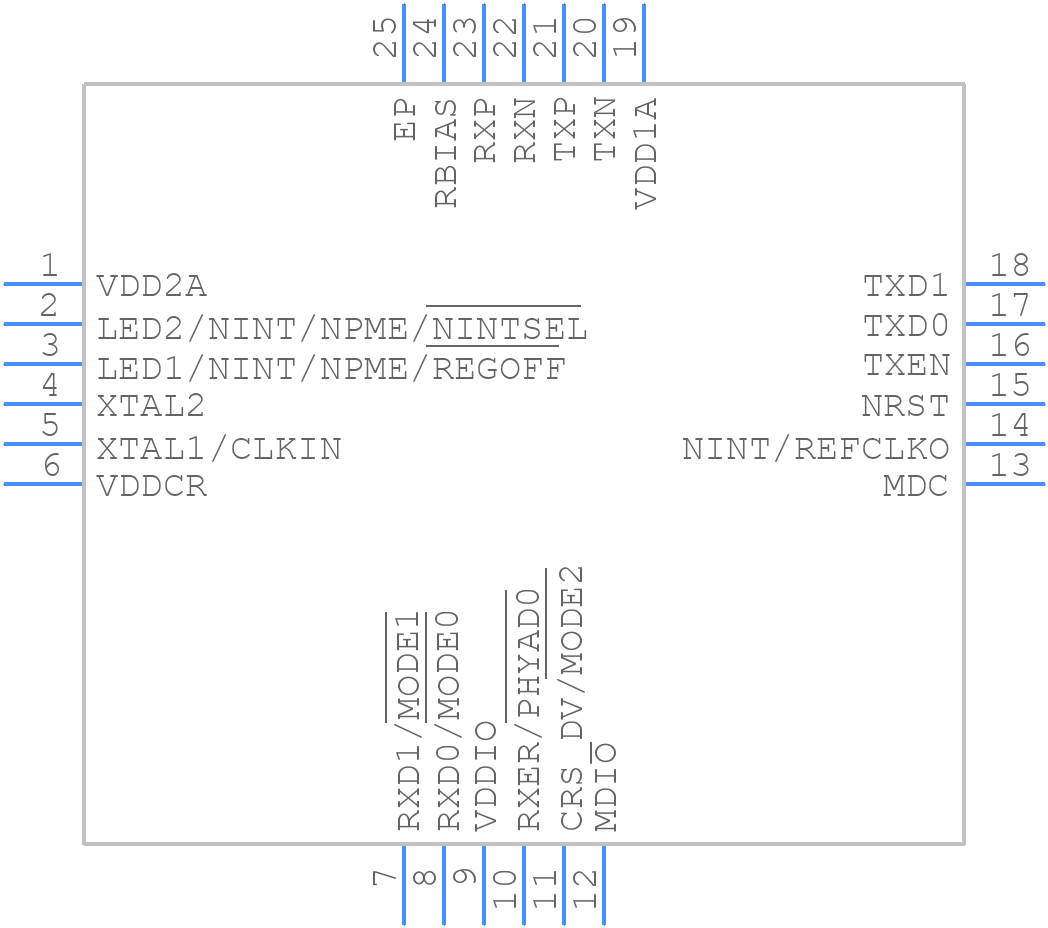

LAN8742AI-CZ - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8742AI-CZ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin SQFN
click to zoom
3D Models
LAN8742AI-CZ - Microchip - 3D model - Quad Flat No-Lead - 24-Pin SQFN
click to zoom

LAN8742AI-CZ Details

  • Manufacturer Part Number:

    LAN8742AI-CZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

LAN8742AI-CZ Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the LAN8742AI-CZ evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The LAN8742AI-CZ can be configured for different PHY modes using the strap pins or through software control. Refer to the datasheet and application notes for specific configuration details.
  • The LAN8742AI-CZ supports cable lengths up to 100 meters, depending on the specific application and cable quality.
  • Microchip provides a troubleshooting guide in the LAN8742AI-CZ datasheet and application notes, which covers common issues and debugging techniques.
  • Yes, the LAN8742AI-CZ is rated for industrial temperature ranges (-40°C to 85°C) and is suitable for use in industrial applications.
