LAN8814/ZMX - Microchip

Description: 4/4 Transceiver Full, Half Ethernet, IEEE 802.3 128-TQFP (14x14) 3.3V or 2.5V -40 to +85°C

Download LAN8814/ZMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN8814/ZMX - Microchip - PCB symbol
click to zoom
PCB Footprints

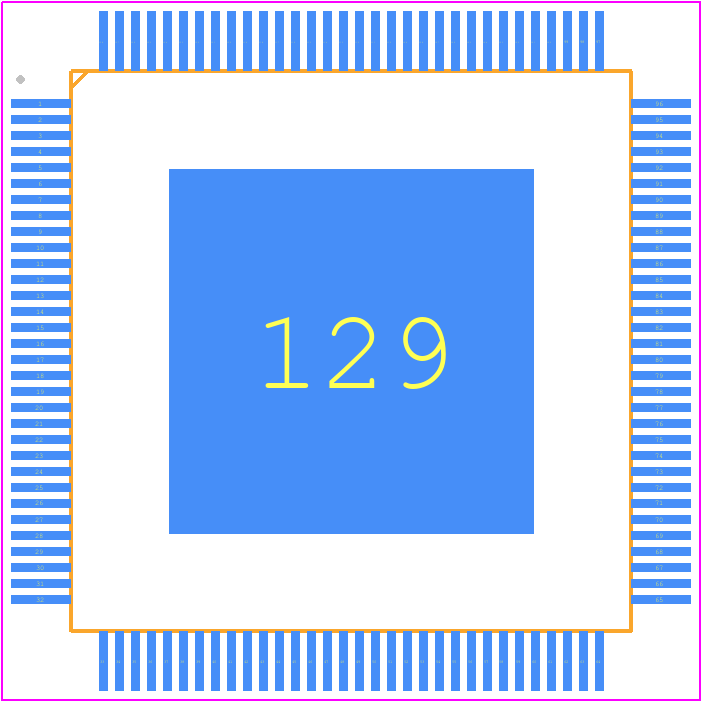

LAN8814/ZMX - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-TQFP
click to zoom
3D Models
LAN8814/ZMX - Microchip - 3D model - Quad Flat Packages - 128-TQFP
click to zoom

LAN8814/ZMX Details

  • Manufacturer Part Number:

    LAN8814/ZMX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    TQFP-128

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    QFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

LAN8814/ZMX Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the LAN8814/ZMX evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The LAN8814/ZMX can be configured for different PHY modes (e.g., 10BASE-T, 100BASE-TX, 1000BASE-T) using the device's register settings. Refer to the datasheet and the Microchip LAN8814/ZMX configuration tool for specific register settings and configuration guidelines.
  • The LAN8814/ZMX supports cable lengths up to 100 meters for 10BASE-T and 100BASE-TX modes, and up to 70 meters for 1000BASE-T mode, assuming a Category 5e or higher cable is used.
  • Microchip provides a troubleshooting guide in the LAN8814/ZMX datasheet and application notes, which covers common issues and their solutions, such as link integrity tests, signal quality checks, and register configuration verification.
  • Yes, the LAN8814/ZMX is rated for industrial temperature ranges (-40°C to 85°C) and is suitable for use in industrial Ethernet applications.
