LAN8814-V/ZMXB - Microchip

LAN8814-V/ZMXB Details

• Manufacturer Part Number:

  LAN8814-V/ZMXB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

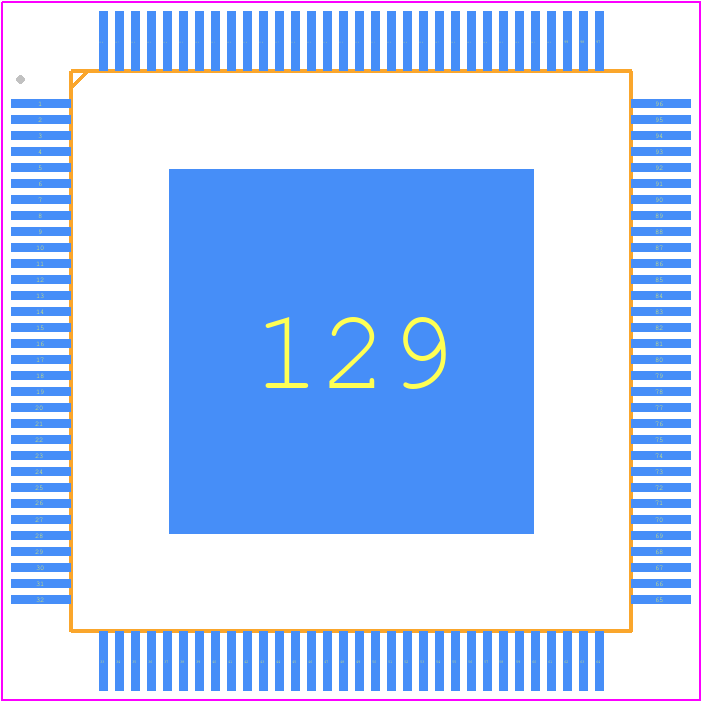

• Package Description:

  TQFP-128

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Data Rate:

  1000000 Mbps

• JESD-30 Code:

  S-PQFP-G128

• Length:

  14 mm

• Number of Functions:

  1

• Number of Terminals:

  128

• Number of Transceivers:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  QFP128,.63SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Telecom IC Type:

  ETHERNET TRANSCEIVER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
