LAN8830/PSA - Microchip

Description: Ethernet ICs Gbit Ethernet Transceiver with RGMII

Download LAN8830/PSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

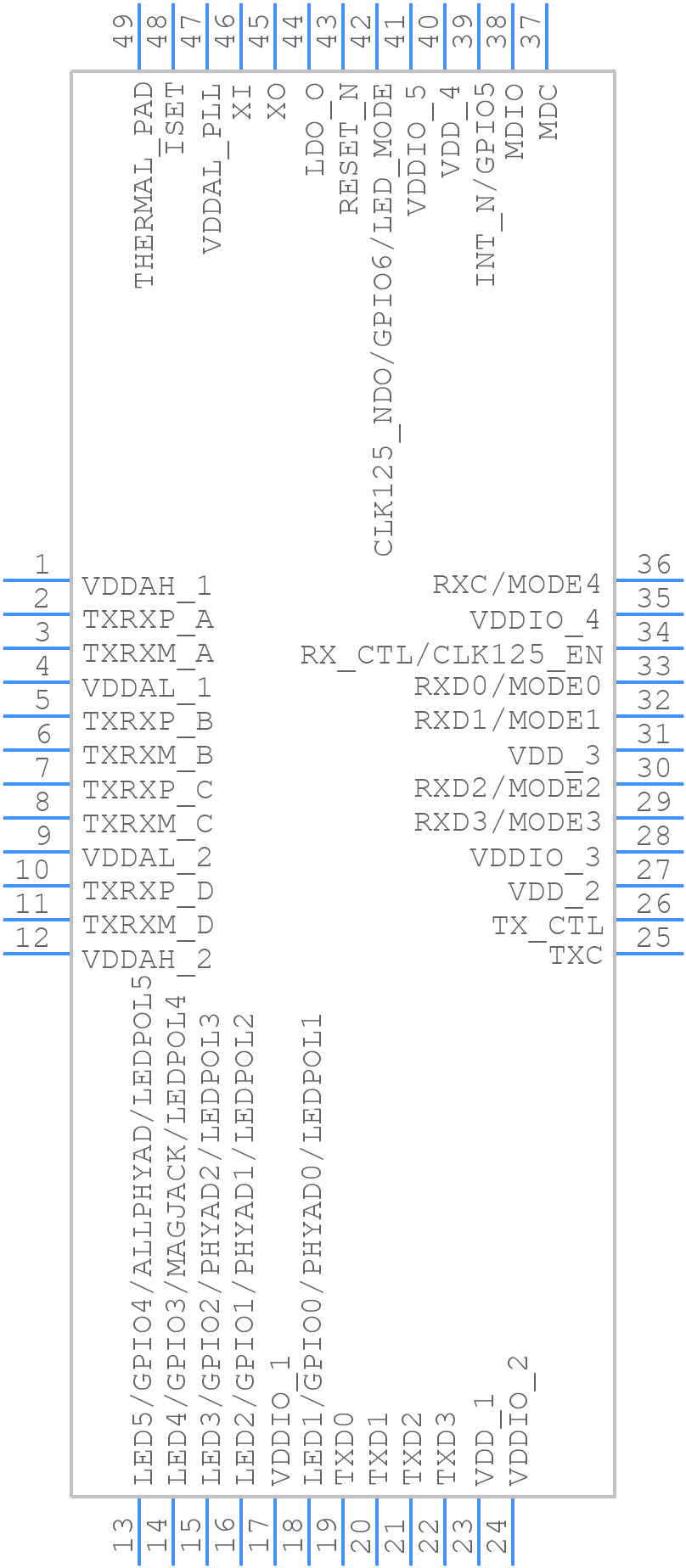

LAN8830/PSA - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8830/PSA - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-LEAD VERY THIN PLASTIC QUAD FLAT
click to zoom
3D Models
LAN8830/PSA - Microchip - 3D model - Quad Flat No-Lead - 48-LEAD VERY THIN PLASTIC QUAD FLAT
click to zoom

LAN8830/PSA Details

  • Manufacturer Part Number:

    LAN8830/PSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LAN8830/PSA Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the LAN8830/PSA evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The LAN8830/PSA can be configured using the Microchip LANCheck GUI tool, which provides a user-friendly interface to configure the device's registers, monitor its performance, and perform diagnostic tests. The tool is available for download on the Microchip website.
  • The LAN8830/PSA supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • Microchip provides a troubleshooting guide in the LAN8830/PSA datasheet, which includes a list of common issues, their possible causes, and recommended solutions. Additionally, the LANCheck GUI tool can be used to monitor the device's performance and diagnose issues.
  • Yes, the LAN8830/PSA is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial Ethernet applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8830/PSA Overview

Use the download button to access the LAN8830/PSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN88, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
