Microchip provides a recommended PCB layout in the LAN8830T-V/PSA evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The LAN8830T-V/PSA is a highly configurable device, and the configuration depends on the specific Ethernet application. Microchip provides a software development kit (SDK) that includes a configuration tool, which allows engineers to customize the device's settings, such as PHY settings, MAC settings, and packet filtering. The SDK also includes example code and documentation to help with the configuration process.
The LAN8830T-V/PSA supports cable lengths up to 100 meters, which is the standard maximum length for Ethernet cables. However, the actual cable length may vary depending on the specific application, cable quality, and environmental factors. It's essential to follow the IEEE 802.3 standard guidelines for Ethernet cable length and installation.
Microchip provides a range of tools and resources to help troubleshoot issues with the LAN8830T-V/PSA, including a debug tool, which allows engineers to monitor and analyze the device's behavior. Additionally, Microchip's technical support team is available to provide assistance with troubleshooting and debugging. It's also recommended to consult the device's datasheet, user's guide, and application notes for troubleshooting guidance.
Yes, the LAN8830T-V/PSA is rated for industrial temperature ranges, specifically -40°C to +85°C. This makes it suitable for use in industrial Ethernet applications, such as factory automation, process control, and building automation. However, it's essential to ensure that the device is properly designed and tested for the specific industrial application and environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LAN8830T-V/PSA Overview

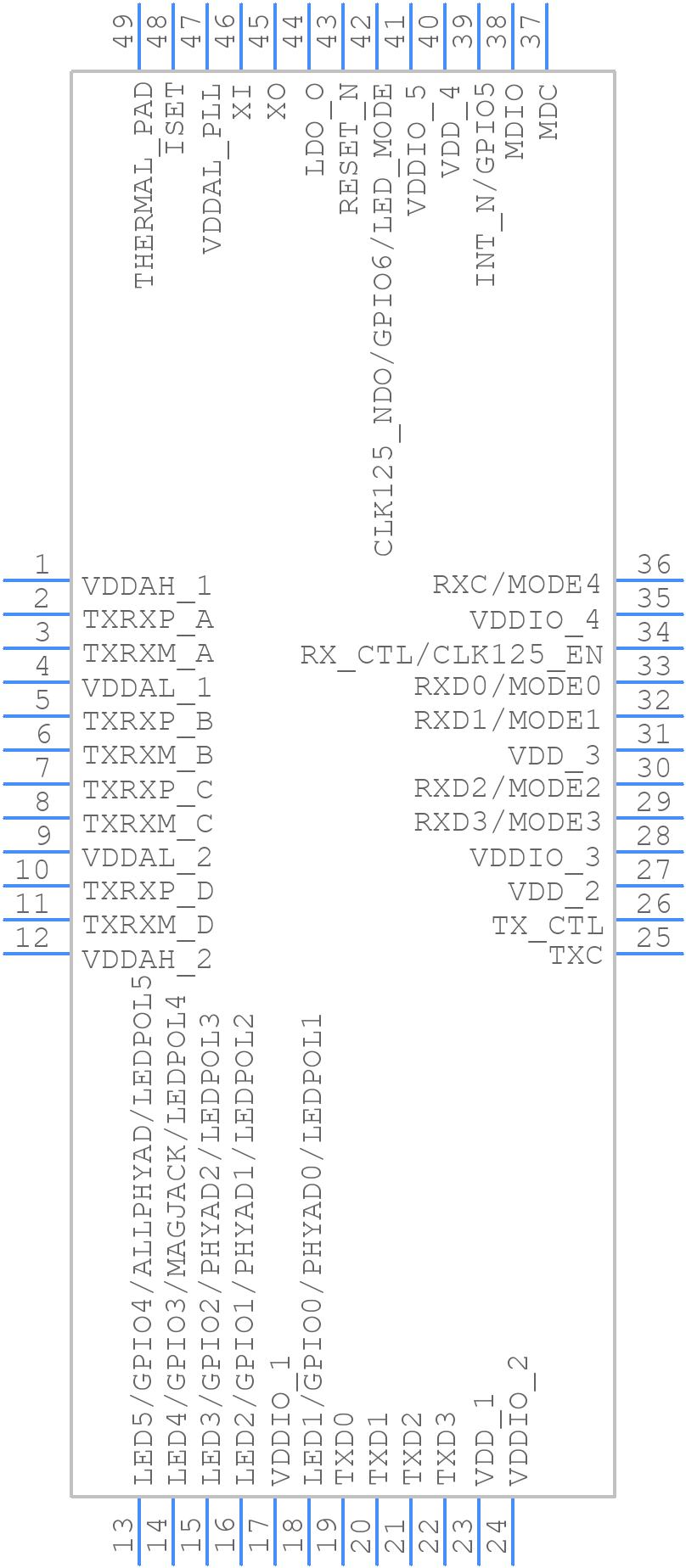

Use the download button to access the LAN8830T-V/PSA schematic symbol, PCB footprint, and 3D model.
