- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LAN8840T/PSA
- Part Number LAN8840T/PSA
- Manufacturer Microchip
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 48-LEAD VERY THIN PLASTIC QUAD FLAT, NO LEAD PACKAGE (PSA) - 7X7 MM BODY [VQFN]
- Released Date Oct 25, 2023
- Last Modified Date Oct 25, 2023 3:15 PM UTC
- Pinout / Pin List Click Here (Member Only)
LAN8840T/PSA Details
-
Manufacturer Part Number:
LAN8840T/PSA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
48
-
Manufacturer Package Code:
VQFN-48
-
Country Of Origin:
Taiwan, Thailand
-
ECCN Code:
4A994.J
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
24
LAN8840T/PSA Frequently Asked Questions (FAQs)
-
Microchip provides a recommended PCB layout guide in the LAN8840T/PSA evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management.
-
The LAN8840T/PSA can be configured using the Microchip LANCheck online configuration tool, which provides a graphical interface for selecting options such as PHY mode, clocking, and LED configuration.
-
The LAN8840T/PSA supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard for Ethernet over twisted pair cables.
-
Microchip provides a troubleshooting guide in the LAN8840T/PSA datasheet, which includes steps for debugging common issues such as link faults, packet loss, and PHY configuration errors.
-
Yes, the LAN8840T/PSA is rated for operation over an industrial temperature range of -40°C to +85°C, making it suitable for use in industrial Ethernet applications.
Trust Checks
Community Provided
System Verified
Community Approved
LAN8840T/PSA Overview

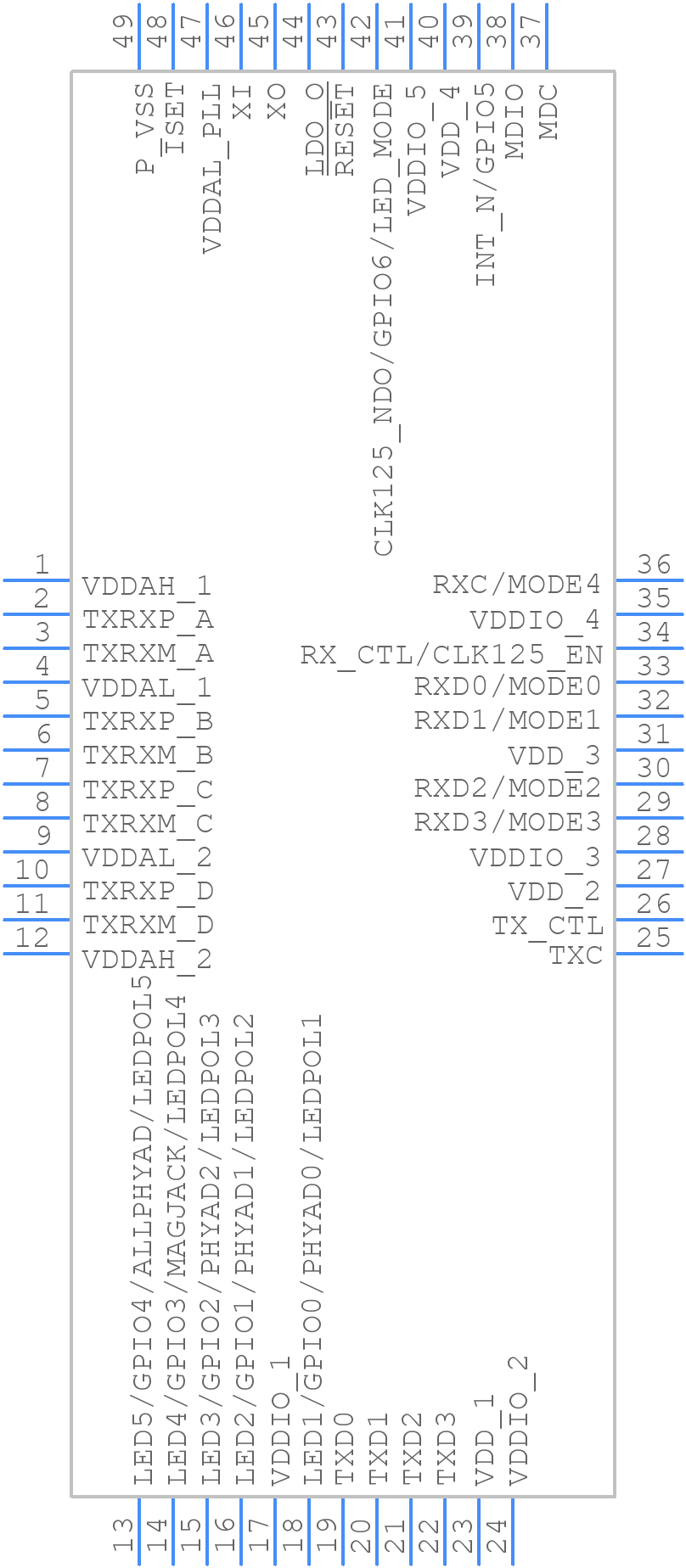

Use the download button to access the LAN8840T/PSA schematic symbol, PCB footprint, and 3D model.
