LAN9311-NZW - Microchip

Description: Ethernet Switch 2-Port 100Mbps 128-Pin XVTQFP Tray

Download LAN9311-NZW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN9311-NZW - Microchip - PCB symbol
click to zoom
PCB Footprints

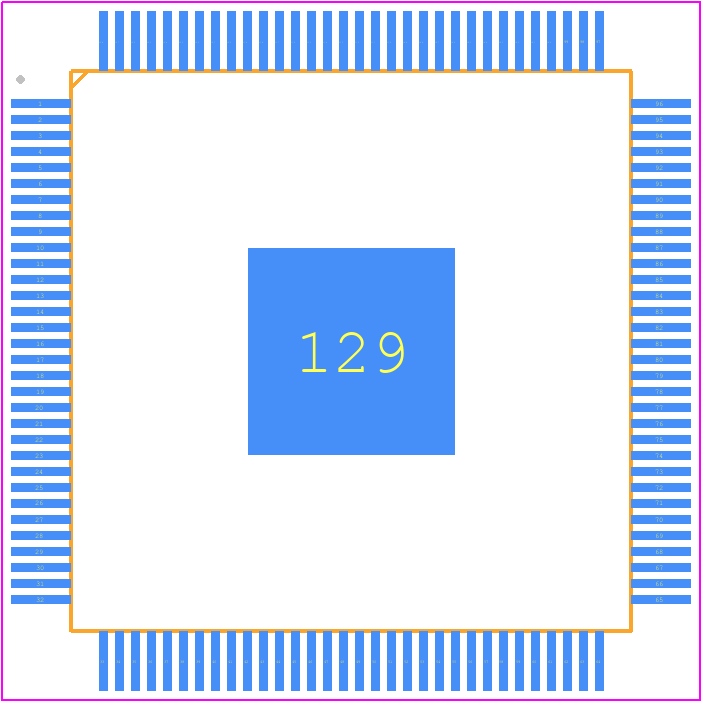

LAN9311-NZW - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-XVTQFP 14X14X1.0MM
click to zoom
3D Models
LAN9311-NZW - Microchip - 3D model - Quad Flat Packages - 128-XVTQFP 14X14X1.0MM
click to zoom

LAN9311-NZW Details

  • Manufacturer Part Number:

    LAN9311-NZW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    XVTQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    TQFP-128

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    295 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

LAN9311-NZW Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide for the LAN9311-NZW in the 'LAN9311-NZW Layout Guidelines' document, which can be found on the Microchip website. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
  • The LAN9311-NZW can be configured for different network topologies using the Microchip LAN9311-NZW Configuration Tool, which is available on the Microchip website. This tool allows you to customize the device's settings for your specific network requirements.
  • The LAN9311-NZW supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • Microchip provides a troubleshooting guide for the LAN9311-NZW, which can be found in the 'LAN9311-NZW Troubleshooting Guide' document on the Microchip website. This guide provides step-by-step instructions for identifying and resolving common issues.
  • Yes, the LAN9311-NZW is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN9311-NZW Overview

Use the download button to access the LAN9311-NZW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN93, or try a keyword search, such as Telecom Switching Circuits
