LAN9311I-NZW - Microchip

Description: Microchip LAN9311I-NZW, 2-port Ethernet Switch IC, MII, 10 Mbit/s, 100 Mbit/s 1.8 V, 3.3 V, 128-Pin XVTQFP

Download LAN9311I-NZW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN9311I-NZW - Microchip - PCB symbol
click to zoom
PCB Footprints

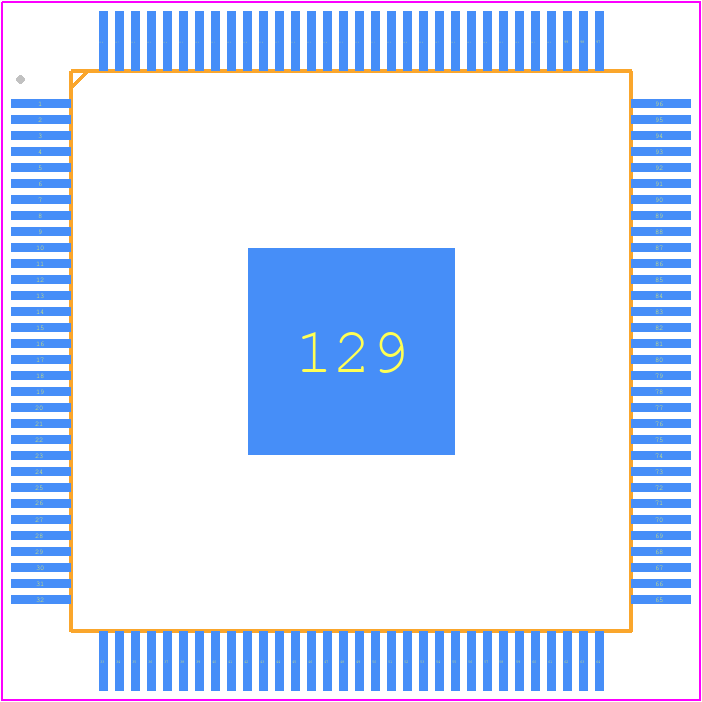

LAN9311I-NZW - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - LAN9311I-NZW
click to zoom
3D Models
LAN9311I-NZW - Microchip - 3D model - Quad Flat Packages - LAN9311I-NZW
click to zoom

LAN9311I-NZW Details

  • Manufacturer Part Number:

    LAN9311I-NZW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    XVTQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    TQFP-128

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    295 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

LAN9311I-NZW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate, and use a common mode filter to reduce EMI.
  • Use the Microchip LAN9311I-NZW evaluation board and the accompanying software development kit (SDK) to configure the device for your specific network topology. The SDK provides a graphical user interface (GUI) to configure the device's registers and settings.
  • The LAN9311I-NZW supports cable lengths up to 100 meters, depending on the cable type and quality. However, it's recommended to use Category 5e or higher cables to ensure reliable operation.
  • Use the Microchip LAN9311I-NZW evaluation board and the accompanying SDK to debug and troubleshoot issues. The SDK provides a debug console and a set of diagnostic tools to help identify and resolve issues.
  • Yes, the LAN9311I-NZW is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and harsh environments.
