LAN9313-NZW-TR - Microchip

Description: IC ETHER SW 3PORT 16BIT 128TQFP

Download LAN9313-NZW-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN9313-NZW-TR - Microchip - PCB symbol
click to zoom
PCB Footprints

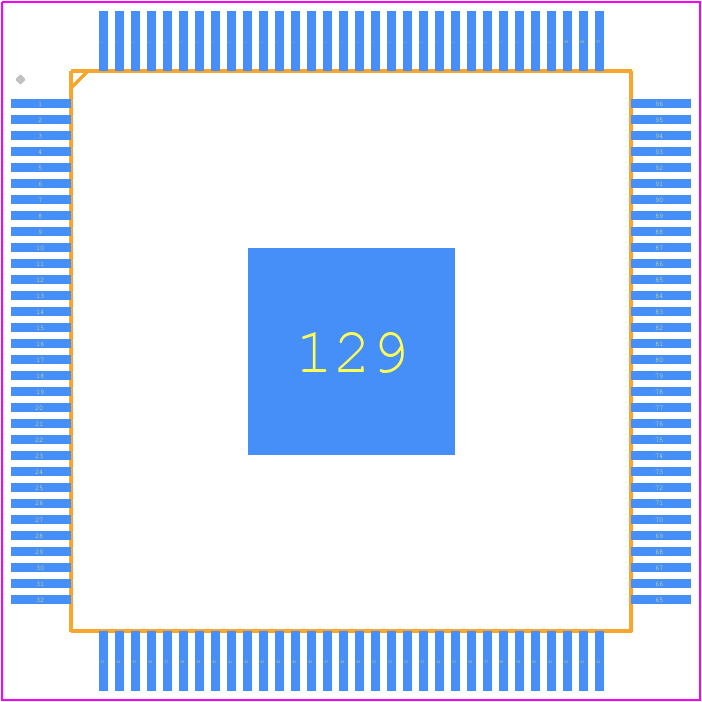

LAN9313-NZW-TR - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-XVTQFP 14X14X1.0MM
click to zoom
3D Models
LAN9313-NZW-TR - Microchip - 3D model - Quad Flat Packages - 128-XVTQFP 14X14X1.0MM
click to zoom

LAN9313-NZW-TR Details

  • Manufacturer Part Number:

    LAN9313-NZW-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XVTQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    TQFP-128

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.27 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

LAN9313-NZW-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in their application note AN2054, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The LAN9313-NZW-TR can be configured for various network topologies using the Microchip LANCheck online tool or the LAN9313-EVK evaluation kit. These resources provide guidance on configuring the device for specific network topologies, such as star, bus, or ring configurations.
  • The LAN9313-NZW-TR supports cable lengths up to 100 meters, as specified in the IEEE 802.3u standard. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • Microchip provides a troubleshooting guide in their application note AN2055, which covers common issues and their solutions, including link faults, packet loss, and EMI-related problems. Additionally, the LAN9313-EVK evaluation kit includes diagnostic tools and software to help identify and resolve issues.
  • Yes, the LAN9313-NZW-TR is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in harsh environments and industrial applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN9313-NZW-TR Overview

Use the download button to access the LAN9313-NZW-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN93, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
