LAN9313I-NZW - Microchip

Description: Ethernet Switch 3-Port 10Mbps/100Mbps 128-Pin XVTQFP Tray

Download LAN9313I-NZW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN9313I-NZW - Microchip - PCB symbol
click to zoom
PCB Footprints

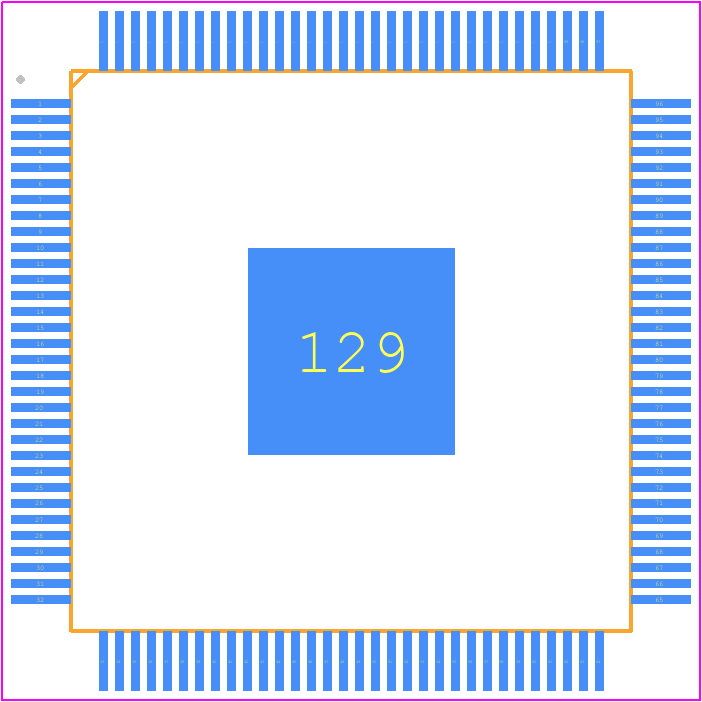

LAN9313I-NZW - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-XVTQFP 14X14X1.0MM
click to zoom
3D Models
LAN9313I-NZW - Microchip - 3D model - Quad Flat Packages - 128-XVTQFP 14X14X1.0MM
click to zoom

LAN9313I-NZW Details

  • Manufacturer Part Number:

    LAN9313I-NZW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    XVTQFP-128

  • Pin Count:

    128

  • Manufacturer Package Code:

    TQFP-128

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.27 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

LAN9313I-NZW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate, and use a common mode filter to reduce EMI.
  • Use the Microchip LAN9313I-NZW evaluation board and the LAN9313I-NZW configuration software to configure the device for your specific network topology. The software provides a graphical user interface to set up the device for different network configurations.
  • The LAN9313I-NZW supports cable lengths up to 100 meters, but the actual cable length may vary depending on the specific application and cable quality.
  • Use the Microchip LAN9313I-NZW evaluation board and the LAN9313I-NZW configuration software to troubleshoot issues. The software provides diagnostic tools and debugging capabilities to identify and resolve issues.
  • Yes, the LAN9313I-NZW is compatible with industrial Ethernet protocols such as PROFINET and EtherNet/IP. It supports a range of industrial Ethernet protocols and can be configured to work with specific protocols using the LAN9313I-NZW configuration software.
