LAN9353I/PT - Microchip

Description: Microchip LAN9353I/PT, 3-Port Ethernet Switch IC, 10/100Mbit/s 1.2 (Digital) V, 3.3 (Analogue) V, 64-Pin TQFP-EP

Download LAN9353I/PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAN9353I/PT - Microchip - PCB symbol
click to zoom
PCB Footprints

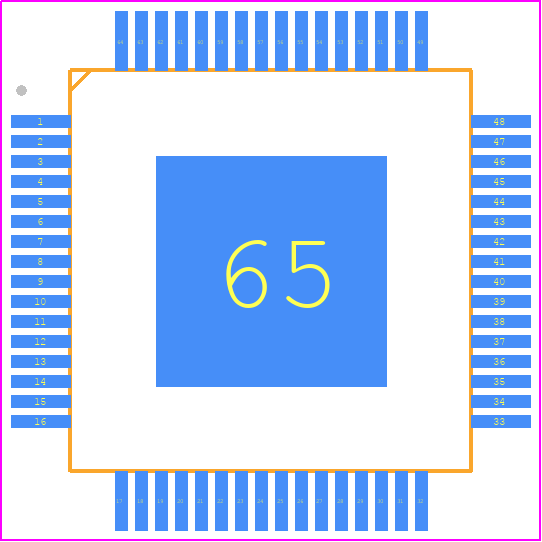

LAN9353I/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-TQFP-EP-1
click to zoom
3D Models
LAN9353I/PT - Microchip - 3D model - Quad Flat Packages - 64-TQFP-EP-1
click to zoom

LAN9353I/PT Details

  • Manufacturer Part Number:

    LAN9353I/PT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    64

  • Manufacturer Package Code:

    TQFP-64

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    PQFP64,.48SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

LAN9353I/PT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter and a shielded RJ-45 connector to reduce EMI.
  • The LAN9353I/PT can be configured for half-duplex or full-duplex operation through the MDIO interface. Set the duplex mode by writing to the BMCR register (0x00) and setting the DUPLEX bit (bit 10) accordingly.
  • The LAN9353I/PT supports cable lengths up to 100 meters, as per the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environment.
  • The LAN9353I/PT has a built-in power management feature that can be controlled through the PMD register (0x10). Set the PWDN bit (bit 15) to 1 to power down the device. You can also use the Wake-On-LAN (WOL) feature to wake up the device from power-down mode.
  • The LAN9353I/PT has a maximum junction temperature of 150°C. Ensure good airflow around the device and use a heat sink if necessary. The device also has a thermal shutdown feature that activates when the junction temperature exceeds 160°C.
