Microchip provides a recommended PCB layout in the LAN9360A-EVB evaluation board user's guide, which can be used as a reference for designing a custom board. Additionally, following general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces, is recommended.
The LAN9360A-I/CQB-100 is a highly configurable device, and configuration depends on the specific network topology and requirements. Microchip provides a software development kit (SDK) and application notes that provide guidance on configuring the device for various topologies, such as daisy-chaining, star, and ring topologies.
The maximum cable length supported by the LAN9360A-I/CQB-100 depends on the specific cable type and quality, as well as the network topology. In general, the device supports cable lengths up to 100 meters for Category 5e or higher cables, but it's recommended to consult the datasheet and application notes for specific guidance.
Microchip provides a range of tools and resources to help troubleshoot issues with the LAN9360A-I/CQB-100, including a debug tool, application notes, and FAQs. Additionally, following general troubleshooting best practices, such as checking power supply, clock signals, and signal integrity, can help identify and resolve issues.
Yes, the LAN9360A-I/CQB-100 is rated for industrial temperature ranges, specifically -40°C to +85°C. However, it's recommended to consult the datasheet and application notes for specific guidance on operating the device in extreme temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LAN9360A-I/CQB-100 Overview

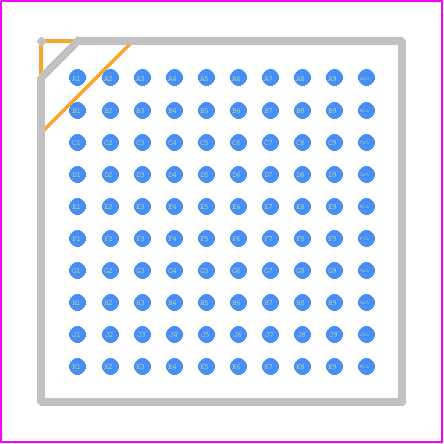

Use the download button to access the LAN9360A-I/CQB-100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN93,
or try a keyword search, such as Network Interfaces
