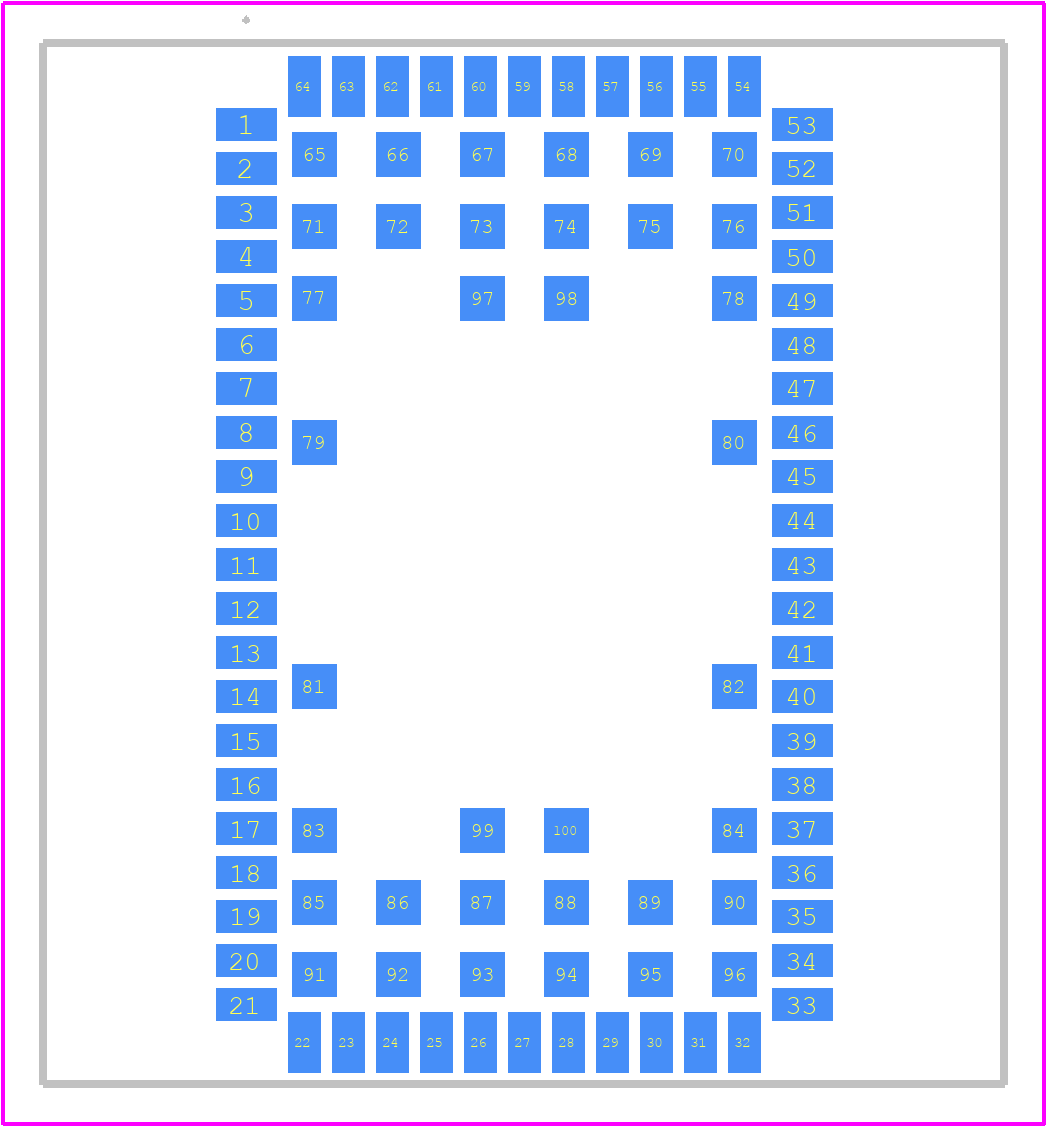

LARA-R6401-00B - u-blox PCB footprint - Other - Other - LARA-R6401-00B-2
click to zoom
3D Models
LARA-R6401-00B - u-blox - 3D model - Other - LARA-R6401-00B-2
click to zoom

LARA-R6401-00B Details

  • Manufacturer Part Number:

    LARA-R6401-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-100

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    8.9

  • JESD-30 Code:

    R-XQCC-N100

  • Length:

    26 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    96

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Screening Level:

    AEC-Q104; ATEX

  • Seated Height-Max:

    2.87 mm

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LARA-R6401-00B Frequently Asked Questions (FAQs)

  • The recommended power supply voltage for the LARA-R6401-00B module is 3.3V to 4.2V, with a typical voltage of 3.8V.
  • The UART interface can be configured using the AT command set. The default baud rate is 115200, but it can be changed using the AT+IPR command. The UART interface also supports flow control and can be configured for RTS/CTS or XON/XOFF flow control.
  • The maximum data transfer rate of the LARA-R6401-00B module is 10 Mbps for the UART interface and 100 Mbps for the USB interface.
  • Yes, the LARA-R6401-00B module supports SMS and USSD. It can send and receive SMS messages, and also supports USSD commands for interacting with the cellular network.
  • Firmware updates can be performed using the u-blox u-center software tool. The tool provides a graphical interface for updating the firmware and configuring the module's settings.
