LARA-R6401D-00B - u-blox

Description: Cellular LTE Transceiver Module 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz Antenna Not Included Surface Mount

Download LARA-R6401D-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LARA-R6401D-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

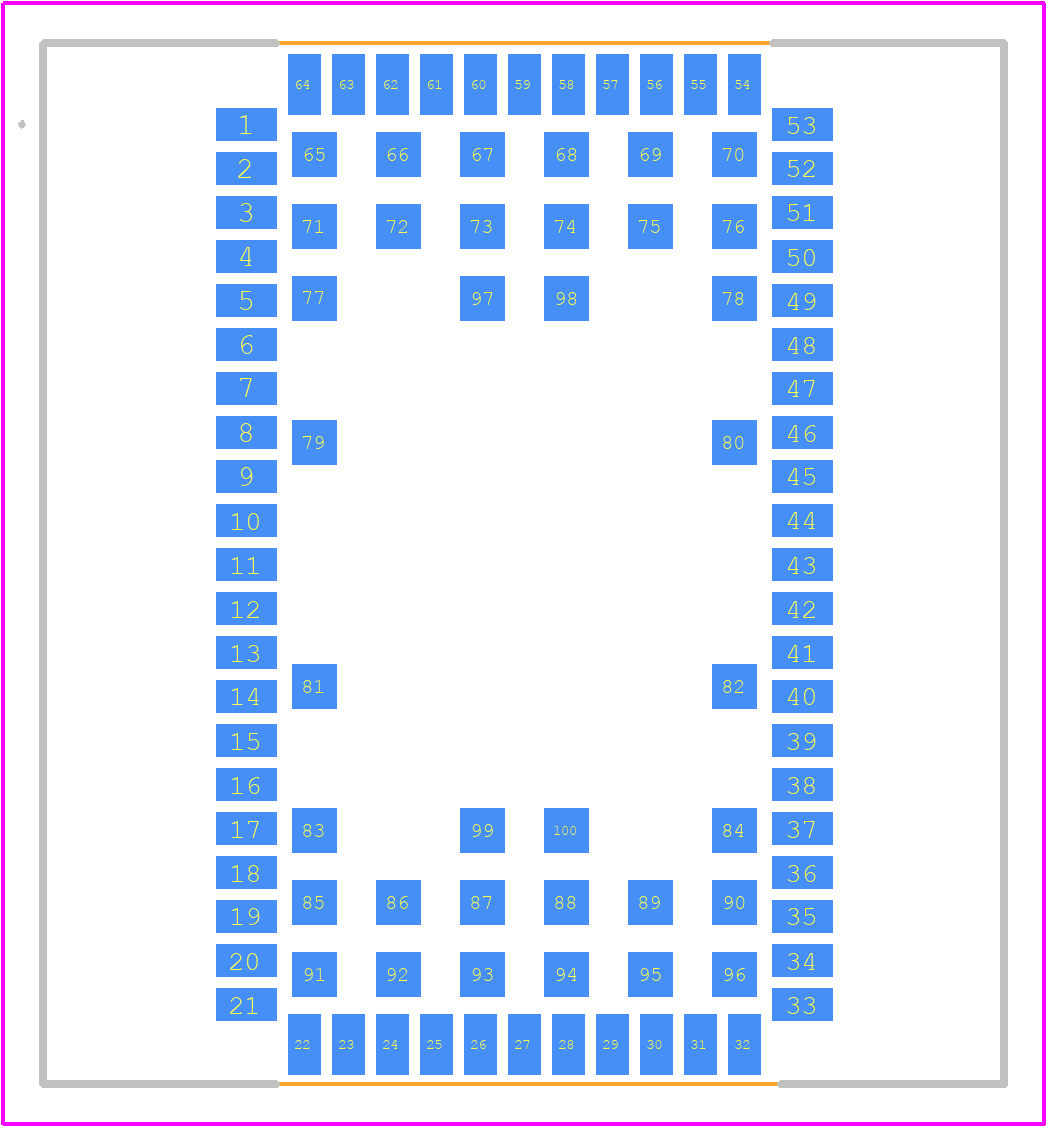

LARA-R6401D-00B - u-blox PCB footprint - Other - Other - LARA-R6401D-00B-3
click to zoom
3D Models
LARA-R6401D-00B - u-blox - 3D model - Other - LARA-R6401D-00B-3
click to zoom

LARA-R6401D-00B Details

  • Manufacturer Part Number:

    LARA-R6401D-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-100

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    8.9

  • JESD-30 Code:

    R-XQCC-N100

  • Length:

    26 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    96

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Screening Level:

    AEC-Q104; ATEX

  • Seated Height-Max:

    2.87 mm

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LARA-R6401D-00B Frequently Asked Questions (FAQs)

  • The recommended power supply voltage for the LARA-R6401D-00B module is 3.3V to 4.2V, with a typical voltage of 3.8V.
  • The UART interface of the LARA-R6401D-00B module can be configured using the AT command set. The default baud rate is 115200, but it can be changed using the AT+IPR command.
  • The maximum data transfer rate of the LARA-R6401D-00B module's USB interface is 12 Mbps.
  • Yes, the LARA-R6401D-00B module supports simultaneous LTE and GNSS operation, allowing for concurrent data transmission and location tracking.
  • The operating temperature range of the LARA-R6401D-00B module is -40°C to +85°C.
