LARA-R6801-00B - u-blox

Description: Cellular GSM, LTE, WCDMA Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz Antenna Not Included Surface Mount

Download LARA-R6801-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LARA-R6801-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

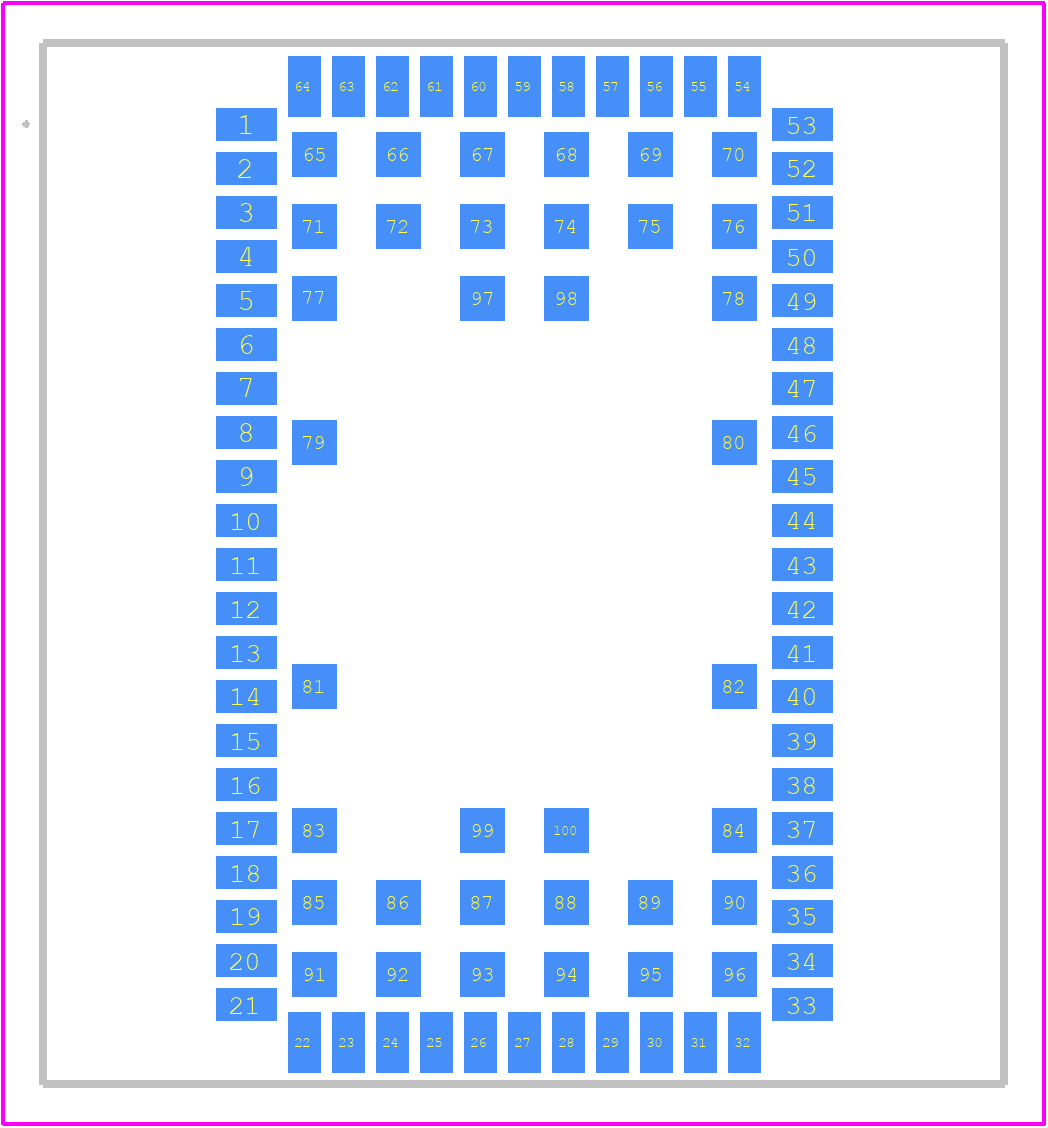

LARA-R6801-00B - u-blox PCB footprint - Other - Other - LARA-R6801-00B-1
click to zoom
3D Models
LARA-R6801-00B - u-blox - 3D model - Other - LARA-R6801-00B-1
click to zoom

LARA-R6801-00B Details

  • Manufacturer Part Number:

    LARA-R6801-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-100

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    8.9

  • JESD-30 Code:

    R-XQCC-N100

  • Length:

    26 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    96

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Screening Level:

    AEC-Q104; ATEX

  • Seated Height-Max:

    2.87 mm

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LARA-R6801-00B Frequently Asked Questions (FAQs)

  • The typical power consumption of the LARA-R6801-00B module is around 350mA during LTE transmission and 10mA during idle mode.
  • Yes, the LARA-R6801-00B module supports Voice over LTE (VoLTE) and can be used for voice and video calls over LTE networks.
  • The LARA-R6801-00B module supports maximum downlink data transfer rates of up to 100Mbps and uplink rates of up to 50Mbps.
  • No, the LARA-R6801-00B module is a 4G LTE module and does not support 5G networks. For 5G support, consider u-blox's newer modules like the LARA-R8150A.
  • The LARA-R6801-00B module supports various operating systems, including Windows, Linux, and Android.
