- Part Number LAT-8+
- Manufacturer Mini-Circuits
- Pin Count 4
- Part Category Attenuator or Isolator
- Package Category Other
- Footprint Name Other - MMM168
- Released Date Apr 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LAT-8+ Details
-
Manufacturer Part Number:
LAT-8+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6
-
Attenuation-Nom:
8 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
26.99 dBm
LAT-8+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The LAT-8+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system. You can use online impedance matching calculators or consult with a RF design expert.
-
The LAT-8+ can handle up to 1W of continuous power, but it's recommended to derate the power handling to ensure reliability and prevent overheating. Consult with Mini-Circuits or a RF design expert for specific power handling guidelines.
-
Yes, the LAT-8+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth and that the switching signal is properly filtered to prevent damage to the device.
-
To troubleshoot issues with the LAT-8+, start by checking the PCB layout and footprint for any errors or omissions. Then, verify that the input and output signals are within the specified frequency range and power levels. Use a spectrum analyzer or oscilloscope to measure the signal quality and identify any distortions or anomalies.
Trust Checks
Community Provided
System Verified
Community Approved
LAT-8+ Overview

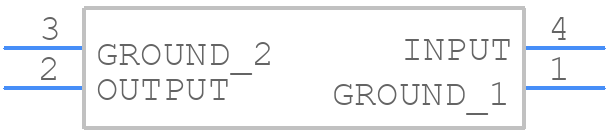

Use the download button to access the LAT-8+ schematic symbol, PCB footprint, and 3D model.
