LAVI-2VH+ - Mini-Circuits

Description: RF Mixer Level 23, SMT Triple Balanced Mixer, RF/LO Freq 2 - 1100 MHz

Download LAVI-2VH+ Model

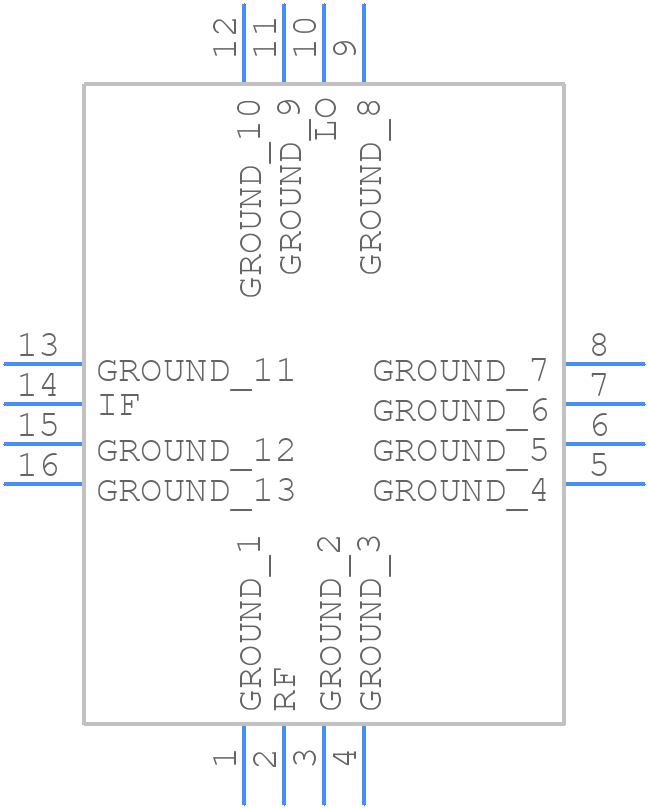

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

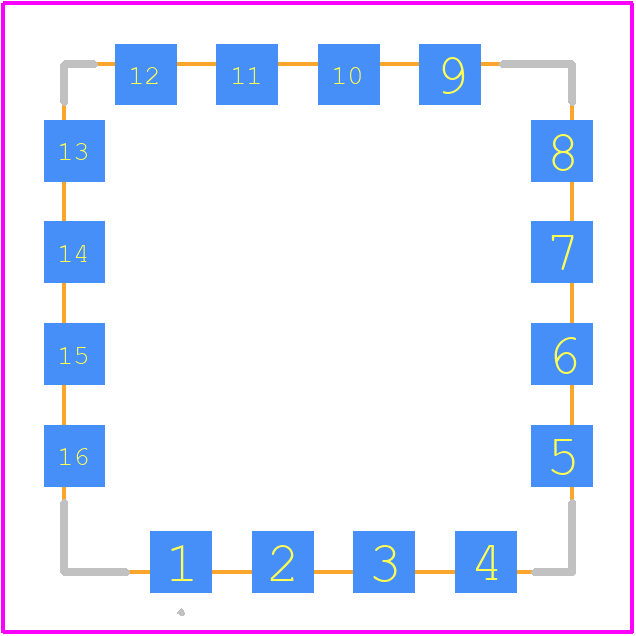

LAVI-2VH+ - Mini-Circuits PCB footprint - Other - Other - CK605_2023
click to zoom
3D Models
LAVI-2VH+ - Mini-Circuits  - 3D model - Other - CK605_2023
click to zoom

LAVI-2VH+ Details

  • Manufacturer Part Number:

    LAVI-2VH+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.5 dB

  • Input Power-Max (CW):

    24 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1100 MHz

  • Operating Frequency-Min:

    2 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    LCC16,.5SQ,100

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    5.01

LAVI-2VH+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The device should be placed near the edge of the board to minimize signal reflections. A low-impedance path to ground is essential for the amplifier's output stage.
  • To ensure stability, make sure to follow the recommended component values and PCB layout. Additionally, use a low-pass filter at the output to prevent high-frequency oscillations. If oscillations still occur, try adding a small resistor (e.g., 10 ohms) in series with the output to dampen the oscillations.
  • The maximum input power that the LAVI-2VH+ can handle is +20 dBm. Exceeding this limit may cause permanent damage to the device. It's essential to ensure that the input signal is attenuated or limited to prevent damage.
  • Yes, the LAVI-2VH+ can be used as a receiver amplifier. However, keep in mind that the device is optimized for high-linearity and low-noise figure, which may not be the primary concerns in a receiver application. Additionally, the amplifier's output stage is designed for high-power output, which may not be necessary in a receiver circuit.
  • The biasing circuit should be designed to provide a stable voltage supply to the amplifier. Use a low-noise voltage regulator and decouple the supply lines with capacitors to minimize noise and ripple. The recommended bias voltage is 5V, but the device can operate from 4.5V to 5.5V. Adjust the bias voltage to optimize the amplifier's performance for your specific application.
