A good PCB layout for the LBA710S should ensure that the input and output pins are separated, and the input pins are connected to a low-impedance source. Additionally, the PCB should have a solid ground plane and a low-inductance path for the output current. It's also recommended to use a Kelvin connection for the sense pins to minimize errors.
The sense resistor value depends on the desired current sensing range and the accuracy required. A smaller sense resistor value provides a higher current sensing range but may reduce accuracy, while a larger value provides higher accuracy but limits the current sensing range. Typically, a sense resistor value between 1 mΩ and 10 mΩ is suitable for most applications.
The LBA710S has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications. However, it's essential to ensure that the device is properly derated for high-temperature operation to maintain reliability.
Yes, the LBA710S is designed to withstand high-vibration environments. It has a robust package and internal construction that can tolerate vibrations up to 10g peak acceleration. However, it's still essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress.
Common issues with the LBA710S can be troubleshooted by checking the PCB layout, sense resistor value, and input voltage. Ensure that the input voltage is within the recommended range, and the sense resistor value is correct for the application. Also, check for any signs of overheating, such as excessive current draw or high ambient temperatures. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LBA710S Overview

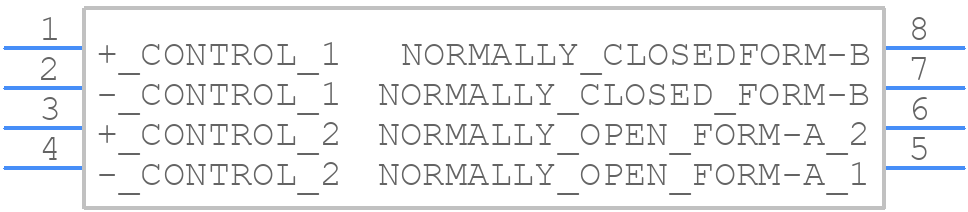

Use the download button to access the LBA710S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LBA71,
or try a keyword search, such as Solid State Relays
