LBAA0QB1SJ-296 - Murata Electronics

Description: LBAA0QB1SJ Series 3.3 V 915 MHz 21.5 dBm Surface Mount LoRa Transceiver Module

Download LBAA0QB1SJ-296 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LBAA0QB1SJ-296 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

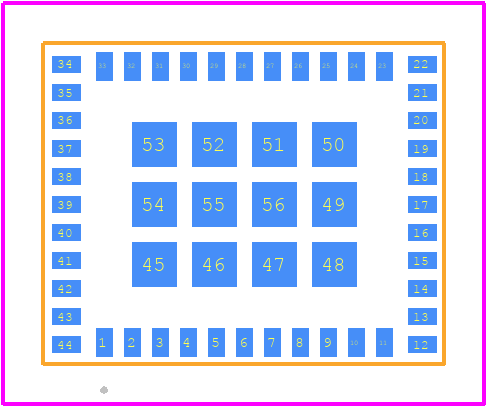

LBAA0QB1SJ-296 - Murata Electronics PCB footprint - Other - Other - LBAA0QB1SJ-296-7
click to zoom
3D Models
LBAA0QB1SJ-296 - Murata Electronics - 3D model - Other - LBAA0QB1SJ-296-7
click to zoom

LBAA0QB1SJ-296 Details

  • Manufacturer Part Number:

    LBAA0QB1SJ-296

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    250

  • Time@Peak Reflow Temperature-Max (s):

    10

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LBAA0QB1SJ-296 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LBAA0QB1SJ-296 is -40°C to +85°C.
  • To configure the LBAA0QB1SJ-296 for optimal performance, ensure that the module is properly soldered to the PCB, and that the antenna is properly connected and matched to the module's impedance.
  • The maximum transmit power of the LBAA0QB1SJ-296 is +20 dBm.
  • The LBAA0QB1SJ-296 module is certified for use in various regions, including the US (FCC), Europe (CE), and Japan (TELEC). However, it is recommended to check the certification status for your specific region.
  • The typical current consumption of the LBAA0QB1SJ-296 is around 20 mA in transmit mode and 10 mA in receive mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LBAA0QB1SJ-296 Overview

Use the download button to access the LBAA0QB1SJ-296 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LBAA0, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
