LBEE5QD1ZM-572 Frequently Asked Questions (FAQs)

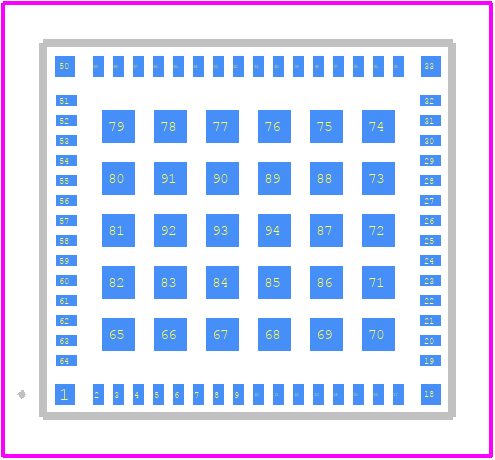

• What is the recommended land pattern for the LBEE5QD1ZM-572?
  The recommended land pattern for the LBEE5QD1ZM-572 can be found in the Murata datasheet, but as a general guideline, a land pattern with a pad size of 2.5mm x 1.6mm and a pitch of 1.5mm is recommended.
• How do I handle the LBEE5QD1ZM-572's sensitivity to moisture?
  To handle the LBEE5QD1ZM-572's sensitivity to moisture, it's essential to follow proper storage and handling procedures, such as storing the components in a dry, cool place, and using a desiccant to control humidity. Additionally, baking the components before reflow soldering can help remove any moisture that may have accumulated.
• What is the maximum reflow temperature for the LBEE5QD1ZM-572?
  The maximum reflow temperature for the LBEE5QD1ZM-572 is 260°C, as specified in the Murata datasheet. It's essential to follow this guideline to avoid damaging the component during the reflow soldering process.
• Can I use the LBEE5QD1ZM-572 in a high-vibration environment?
  While the LBEE5QD1ZM-572 is a robust component, it's essential to consider the vibration specifications in the datasheet. If your application exceeds these specifications, you may need to consider additional mechanical support or vibration damping measures to ensure the component's reliability.
• How do I troubleshoot issues with the LBEE5QD1ZM-572?
  To troubleshoot issues with the LBEE5QD1ZM-572, start by verifying the component's soldering and assembly, checking for any signs of physical damage or contamination. Then, use a multimeter to measure the component's electrical characteristics, such as impedance and resonance frequency, to identify any deviations from the specified values.
