LBEE5XV2EA-802 - Murata Electronics

Description: Bluetooth, WiFi 802.11a/b/g/n/ac/ax, Bluetooth v5.3 Transceiver Module 2.4GHz, 5GHz, 6GHz Antenna Not Included Surface Mount

Download LBEE5XV2EA-802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LBEE5XV2EA-802 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

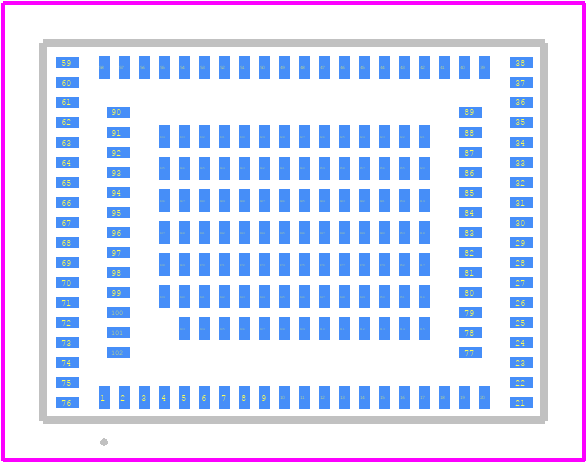

LBEE5XV2EA-802 - Murata Electronics PCB footprint - Other - Other - LBEE5XV2EA-802-2
click to zoom
3D Models
LBEE5XV2EA-802 - Murata Electronics - 3D model - Other - LBEE5XV2EA-802-2
click to zoom

LBEE5XV2EA-802 Details

  • Manufacturer Part Number:

    LBEE5XV2EA-802

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    250

  • Time@Peak Reflow Temperature-Max (s):

    10

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

LBEE5XV2EA-802 Frequently Asked Questions (FAQs)

  • The operating temperature range of the LBEE5XV2EA-802 is -40°C to +85°C.
  • Yes, the LBEE5XV2EA-802 module is certified by the Federal Communications Commission (FCC) for use in the United States and Canada.
  • The maximum transmit power of the LBEE5XV2EA-802 is +18 dBm.
  • Yes, the LBEE5XV2EA-802 supports Bluetooth Low Energy (BLE) 5.0, which provides improved range, speed, and coexistence with other wireless technologies.
  • The typical current consumption of the LBEE5XV2EA-802 in sleep mode is around 0.5 μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LBEE5XV2EA-802 Overview

Use the download button to access the LBEE5XV2EA-802 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LBEE5, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
