- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LC2254OANP
- Part Number LC2254OANP
- Manufacturer E-Switch
- Pin Count 8
- Part Category Switch
- Package Category Other

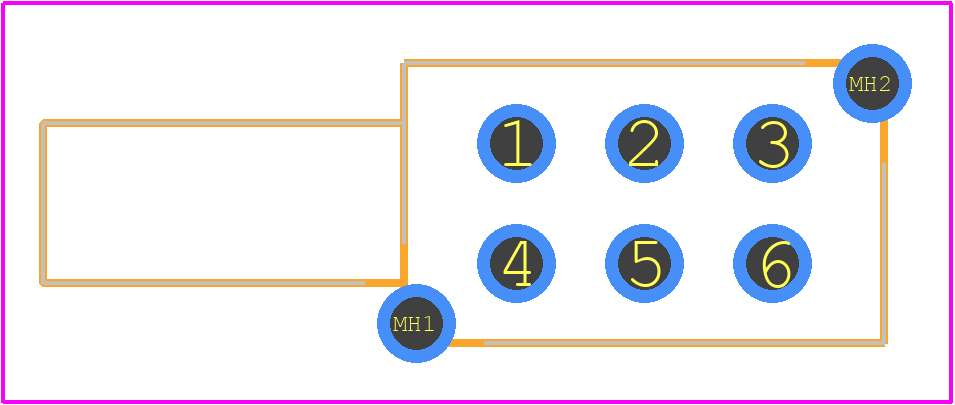

- Footprint Name Other - LC2254
- Released Date Jan 19, 2025
- Last Modified Date Jul 27, 2026 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LC2254OANP Details
-
Manufacturer Part Number:
LC2254OANP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.31
-
Manufacturer:
E-Switch Inc
-
YTEOL:
8.1
-
Switch Type:
PUSHBUTTON SWITCH
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LC2254OANP Overview
Use the download button to access the LC2254OANP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC225,
or try a keyword search, such as Pushbutton Switches
