- Stock & Prices $ Price & Stock for LC2255EESP
- Part Number LC2255EESP
- Manufacturer E-Switch
- Pin Count 8
- Part Category Switch
- Package Category Other
- Footprint Name Other - LC2255EESP-1
- Released Date Mar 9, 2020
- Last Modified Date Jul 27, 2026 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LC2255EESP Details
-
Manufacturer Part Number:
LC2255EESP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.33
-
Manufacturer:
E-Switch Inc
-
YTEOL:
8.1
-
Switch Type:
PUSHBUTTON SWITCH
LC2255EESP Frequently Asked Questions (FAQs)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
-
Yes, the LC2255EESP is designed to withstand high-vibration environments. It has a rugged construction and meets the IEC 61076-2-1 standard for vibration resistance.
-
Yes, the LC2255EESP is rated for operation in temperatures ranging from -40°C to 85°C (-40°F to 185°F) and has a sealing rating of IP67, making it suitable for outdoor and harsh environmental applications.
-
The LC2255EESP has a rated lifespan of 10,000 to 20,000 cycles, depending on the operating conditions and usage. Proper installation, maintenance, and handling can help extend the switch's lifespan.
-
Yes, the LC2255EESP meets the requirements for automotive applications, including resistance to vibration, shock, and extreme temperatures. It's suitable for use in automotive systems, such as infotainment, navigation, and safety systems.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LC2255EESP Overview

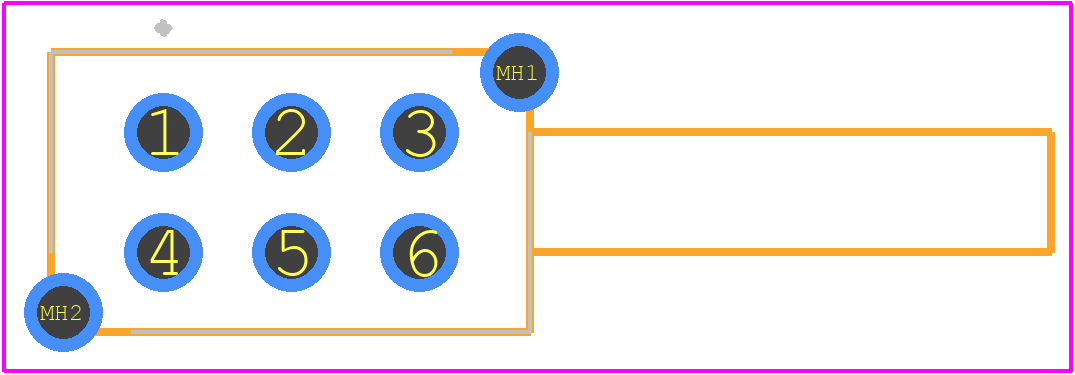

Use the download button to access the LC2255EESP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC225,
or try a keyword search, such as Pushbutton Switches
