- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LC2255OANP
- Part Number LC2255OANP
- Manufacturer E-Switch
- Pin Count 8
- Part Category Switch
- Package Category Other

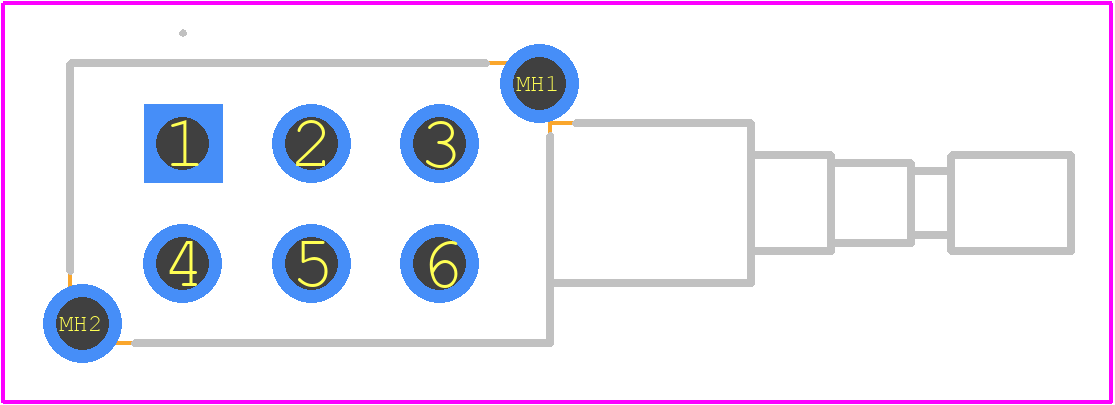

- Footprint Name Other - LC2255OANP-1
- Released Date Mar 12, 2024
- Last Modified Date Jul 27, 2026 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LC2255OANP Details
-
Manufacturer Part Number:
LC2255OANP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.31
-
Manufacturer:
E-Switch Inc
-
YTEOL:
8.1
-
Switch Type:
PUSHBUTTON SWITCH
LC2255OANP Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the LC2255OANP is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
-
Yes, the LC2255OANP is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
-
The typical actuation force required for the LC2255OANP is around 1.5 N to 2.5 N, although this may vary depending on the specific application and usage.
-
Yes, the LC2255OANP is designed to withstand high-vibration and high-shock environments, making it suitable for applications in industrial, automotive, or aerospace industries.
-
Yes, the LC2255OANP is available in various termination options, including radial leads, axial leads, and surface-mount technology (SMT) packages, to accommodate different PCB design requirements.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
LC2255OANP Overview
Use the download button to access the LC2255OANP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC225,
or try a keyword search, such as Pushbutton Switches
