LC2259OANP - E-Switch

Description: PUSHBUTTON, 300mA, 30VDC DPDT, On-(On) Through Hole, Right Angle

Download LC2259OANP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

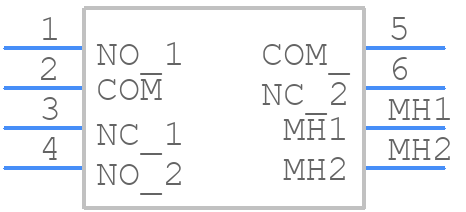

LC2259OANP - E-Switch - PCB symbol
click to zoom
PCB Footprints
LC2259OANP - E-Switch PCB footprint - Other - Other - LC2259OANP-1
click to zoom
3D Models
LC2259OANP - E-Switch - 3D model - Other - LC2259OANP-1
click to zoom

LC2259OANP Details

  • Manufacturer Part Number:

    LC2259OANP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.31

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8.1

  • Switch Type:

    PUSHBUTTON SWITCH

LC2259OANP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LC2259OANP is -20°C to 85°C.
  • Yes, the LC2259OANP is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum switching frequency of the LC2259OANP is 10 Hz.
  • Yes, the LC2259OANP is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6.
  • Yes, the LC2259OANP is designed and tested to meet the requirements of IEC 61508 for use in safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LC2259OANP Overview

Use the download button to access the LC2259OANP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC225, or try a keyword search, such as Pushbutton Switches
