- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LC717A00AJ-AH
- Part Number LC717A00AJ-AH
- Manufacturer onsemi
- Pin Count 30
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SSOP30(225MIL) 3421
- Released Date Aug 3, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LC717A00AJ-AH Details
-
Manufacturer Part Number:
LC717A00AJ-AH
-
Brand Name:
ON Semiconductor
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SSOP-30
-
Pin Count:
30
-
Manufacturer Package Code:
565AZ
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
onsemi
LC717A00AJ-AH Frequently Asked Questions (FAQs)
-
A good PCB layout for the LC717A00AJ-AH involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals under the device.
-
To ensure accurate temperature measurement, it's essential to follow proper thermal design guidelines, such as placing the device close to the thermal source, using a thermal pad or heat sink, and avoiding thermal gradients. Additionally, calibrating the device and using a high-accuracy voltage reference can improve temperature measurement accuracy.
-
Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to keep the voltage below 5V to ensure reliable operation and prevent damage to the device. Exceeding the maximum voltage can lead to device failure or reduced lifespan.
-
The LC717A00AJ-AH is rated for operation up to 125°C, but its accuracy and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or thermal management system to keep the device temperature within the recommended range.
-
To troubleshoot issues with the LC717A00AJ-AH, start by verifying the device's power supply, clock signal, and communication protocol. Check for proper PCB layout, thermal design, and signal integrity. Use a logic analyzer or oscilloscope to debug the communication protocol and verify the device's output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
Community Provided
System Verified
Community Approved
LC717A00AJ-AH Overview

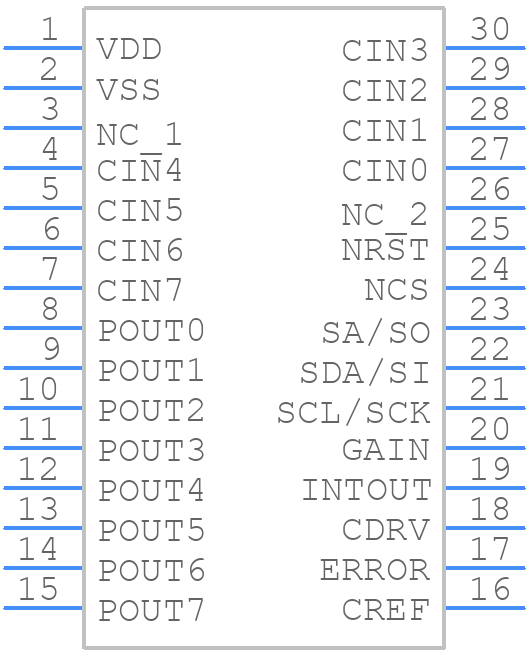

Use the download button to access the LC717A00AJ-AH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC717,
or try a keyword search, such as Other Signal Circuits
