LC717A10AJ-AH - onsemi

Description: --

Download LC717A10AJ-AH Model

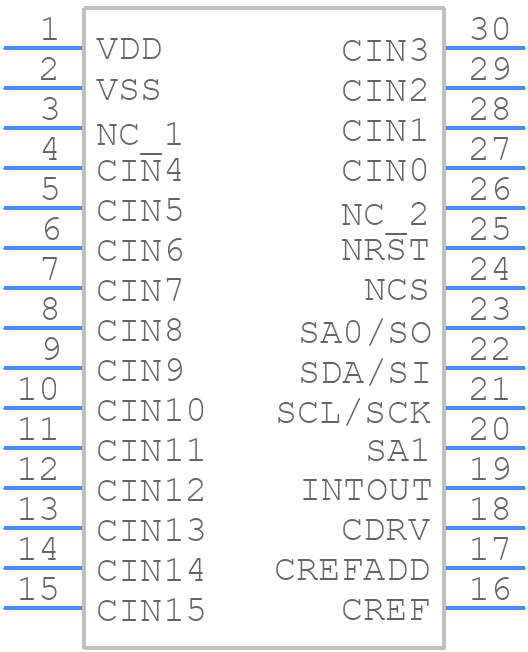

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LC717A10AJ-AH - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SSOP30(225mil)
click to zoom
3D Models
LC717A10AJ-AH - onsemi  - 3D model - Small Outline Packages - SSOP30(225mil)
click to zoom

LC717A10AJ-AH Details

  • Manufacturer Part Number:

    LC717A10AJ-AH

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    565AZ

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e6

  • Length:

    8.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LC717A10AJ-AH Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LC717A10AJ-AH is 2.7V to 5.5V.
  • To ensure the accuracy of the sensor's output, it is recommended to calibrate the sensor during manufacturing and to use a stable power supply. Additionally, the sensor should be operated within the recommended temperature range and humidity levels.
  • The maximum frequency of the sensor's output is 100 kHz.
  • Yes, the LC717A10AJ-AH can be used in high-temperature applications up to 125°C. However, the accuracy of the sensor's output may be affected at high temperatures.
  • The LC717A10AJ-AH can be interfaced with a microcontroller using an analog-to-digital converter (ADC) or a dedicated interface IC. The sensor's output is an analog signal that can be read by the microcontroller's ADC.
