LC75813E-E - onsemi

LC75813E-E Details

• Manufacturer Part Number:

  LC75813E-E

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

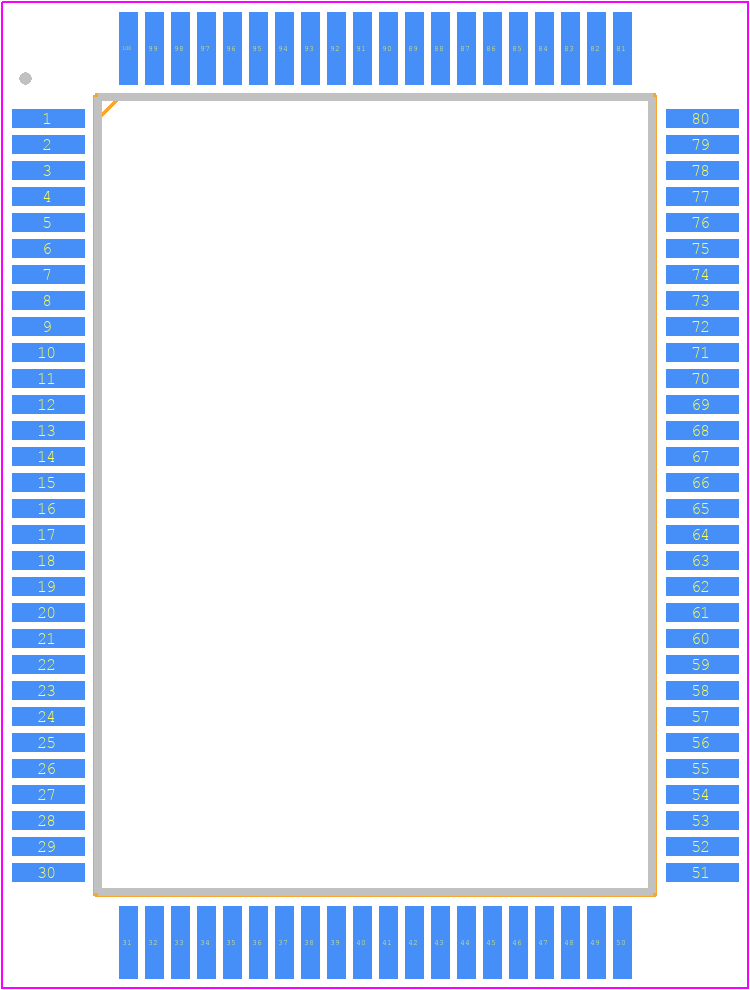

• Package Description:

  QFP-100

• Pin Count:

  100

• Manufacturer Package Code:

  122BV

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Display Mode:

  SEGMENT

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LIQUID CRYSTAL DISPLAY DRIVER

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e6

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  344

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3 mm

• Supply Current-Max:

  0.5 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage1-Max:

  6 V

• Supply Voltage1-Min:

  2.7 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Bismuth (Sn/Bi)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm
