- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LC75847T-E
- Part Number LC75847T-E
- Manufacturer onsemi
- Pin Count 120
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

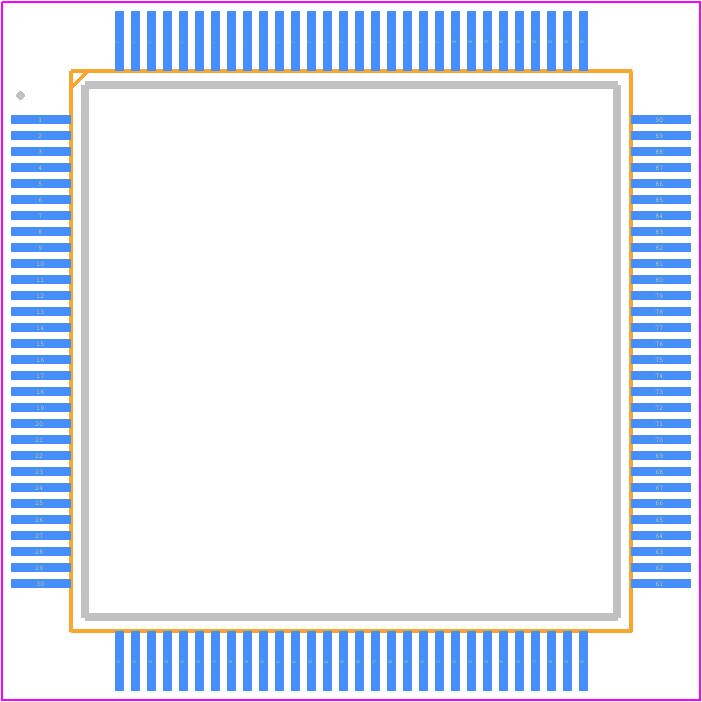

- Footprint Name Quad Flat Packages - LC75847T-E
- Released Date Oct 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LC75847T-E Details
-
Manufacturer Part Number:
LC75847T-E
-
Brand Name:
ON Semiconductor
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Pin Count:
120
-
Manufacturer Package Code:
932AZ
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
onsemi
LC75847T-E Frequently Asked Questions (FAQs)
-
A good PCB layout for the LC75847T-E should ensure that the power supply lines (VCC and GND) are separated from the signal lines, and that the decoupling capacitors are placed close to the IC. Additionally, the layout should minimize the length of the signal lines and avoid crossing them over the power supply lines.
-
To ensure reliability in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range and derated according to the manufacturer's recommendations.
-
The maximum allowable voltage on the input pins of the LC75847T-E is VCC + 0.3V. Exceeding this voltage may cause damage to the device. It is recommended to use voltage limiting resistors or clamping diodes to prevent overvoltage conditions.
-
To troubleshoot issues with the LC75847T-E, start by verifying the power supply voltage and ensuring that it is within the specified range. Check the input signals and ensure they are within the specified logic levels. Use a logic analyzer or oscilloscope to monitor the input and output signals. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
Yes, the LC75847T-E is designed to be a low-power device, with a typical quiescent current of 1.5mA. However, to minimize power consumption, ensure that the device is operated at the lowest possible clock frequency, and use power-down modes when the device is not in use. Additionally, consider using a low-power oscillator or clock source.
Trust Checks
Community Provided
System Verified
Community Approved
LC75847T-E Overview
Use the download button to access the LC75847T-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC758,
or try a keyword search, such as Display Drivers
