LCA110 - CLARE

Description: CLARE - LCA110 - RELAY, MOSFET

Download LCA110 Model

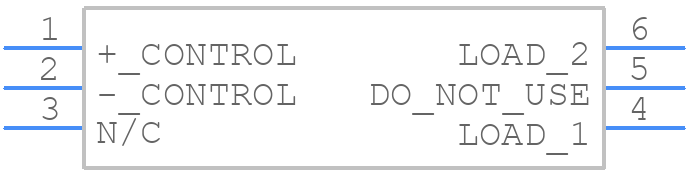

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCA110 - CLARE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6 DIP
click to zoom
3D Models
LCA110 - CLARE  - 3D model - Dual-In-Line Packages - 6 DIP
click to zoom

LCA110 Details

  • Manufacturer Part Number:

    LCA110

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    IXYS Integrated Circuits Division

  • YTEOL:

    5.6

  • Additional Feature:

    CMOS COMPATIBLE, HIGH RELIABILITY, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.002 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.002 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3 mm

  • Overall Length:

    9 mm

  • Packing Method:

    TUBE

  • Terminal Finish:

    MATTE TIN
