Littelfuse recommends a PCB layout with a large copper area connected to the thermal pad of the LCA110S to dissipate heat efficiently. A minimum of 1 oz copper thickness and a thermal relief pattern around the thermal pad are also recommended.
Yes, the LCA110S is designed to meet the requirements of high-reliability applications. It is built with a robust design and undergoes rigorous testing to ensure its reliability and performance. However, it is recommended to consult with Littelfuse's application engineers to ensure that the device meets the specific requirements of your application.
To ensure proper soldering, Littelfuse recommends using a soldering iron with a temperature of 250°C to 270°C and a solder with a melting point of 180°C to 200°C. The thermal pad should be soldered using a solder with a high thermal conductivity, such as SAC305 or SN96.5AG3CU0.5. It is also recommended to use a soldering technique that minimizes the thermal interface resistance, such as reflow soldering.
The LCA110S has an operating temperature range of -40°C to 150°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to consult with Littelfuse's application engineers to determine the optimal operating temperature range for your specific application.
Yes, the LCA110S is designed to handle high-voltage applications. It has a maximum voltage rating of 1100 V and is suitable for use in power supplies, motor control systems, and other high-voltage applications. However, it is recommended to ensure that the device is properly sized and configured for the specific application to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCA110S Overview

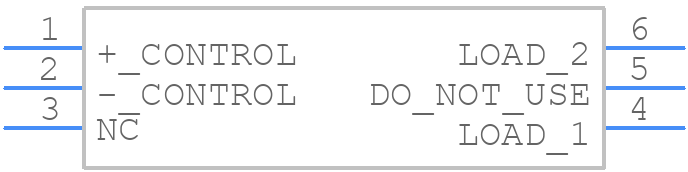

Use the download button to access the LCA110S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCA11,
or try a keyword search, such as Solid State Relays
