A good PCB layout for the LCA120 should ensure good thermal conduction and minimal thermal resistance. This can be achieved by using a thermal pad on the bottom of the device, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat to other layers.
To select the correct fuse rating, you need to consider the maximum current rating of your circuit, the voltage rating, and the fault current rating. You should also consider the ambient temperature, the fuse's melting integral (I²t), and the circuit's inrush current requirements.
The LCA120 is a high-speed fuse with a fast acting characteristic, making it suitable for high-reliability applications. It has a smaller body size compared to other similar fuses, making it ideal for compact designs. The LCA120 also has a higher interrupting rating and a faster response time compared to other fuses in its class.
The LCA120 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, you should ensure that the fuse is properly derated for the operating temperature to prevent premature aging or failure.
To ensure proper installation and security, you should follow the recommended PCB layout and footprint guidelines, use a suitable soldering process, and ensure the fuse is properly seated and secured on the PCB using a suitable mounting method, such as a clip or adhesive.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCA120 Overview

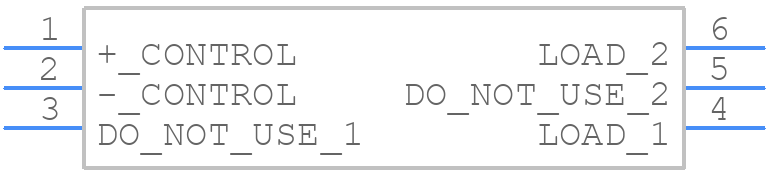

Use the download button to access the LCA120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCA12,
or try a keyword search, such as Solid State Relays
