LCA710S - LITTELFUSE

Description: IXYS 1 A rms/A dc, 1.8 A dc SPNO Solid State Relay, AC/DC, Surface Mount, MOSFET

Download LCA710S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

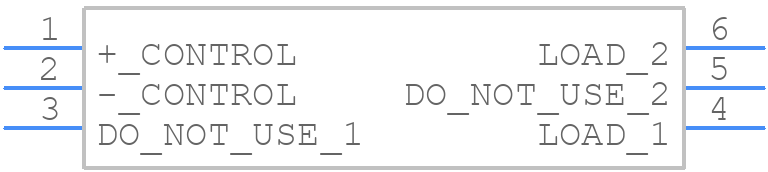

Symbol
LCA710S - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCA710S - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - LCA710S*3.
click to zoom
3D Models
LCA710S - LITTELFUSE - 3D model - Small Outline Packages - LCA710S*3.
click to zoom

LCA710S Details

  • Manufacturer Part Number:

    LCA710S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.01 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    1 A

  • On-state Resistance-Max:

    0.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    8.382 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

LCA710S Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the device should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • Ensure proper heat sinking, use a thermally conductive interface material, and consider derating the device's current rating based on the ambient temperature.
  • The device can withstand voltage transients up to 1.5 times the maximum rated voltage for a duration of 100 ms, but repeated exposure may affect reliability.
  • Yes, but be aware that the device's internal capacitance and inductance may affect high-frequency performance. Consider using a snubber circuit to minimize ringing and ensure reliable operation.
  • Use a transient voltage suppressor (TVS) or a metal oxide varistor (MOV) in parallel with the device to absorb voltage spikes and surges.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCA710S Overview

Use the download button to access the LCA710S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCA71, or try a keyword search, such as Solid State Relays
