LCA715 - LITTELFUSE

Description: Solid State Relays - PCB Mount 1-Form-A 60V 2200mA SSR w/optic MOSFET

Download LCA715 Model

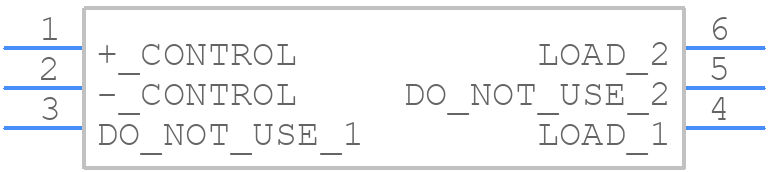

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCA715 - LITTELFUSE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6-Pin DIP
click to zoom
3D Models
LCA715 - LITTELFUSE  - 3D model - Dual-In-Line Packages - 6-Pin DIP
click to zoom

LCA715 Details

  • Manufacturer Part Number:

    LCA715

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.74

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.0009 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    0.15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    8.382 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

LCA715 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance of the LCA715 includes a thermal pad on the bottom of the device, connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, keeping the PCB traces and components away from the thermal pad can help reduce thermal resistance.
  • To ensure proper soldering of the LCA715, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the thermal pad. Use a reflow oven or a hot air gun to solder the device, and avoid applying excessive force or pressure during the soldering process.
  • The maximum allowed voltage drop across the LCA715 is typically 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop can lead to reduced performance, increased power dissipation, and potentially even device failure.
  • While the LCA715 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB layout and design considerations. However, the device's performance and efficiency may be affected at higher frequencies, and additional filtering or decoupling may be required.
  • The LCA715's thermal shutdown feature is designed to protect the device from overheating. When the device reaches a junction temperature of 150°C, it will shut down to prevent damage. To handle this feature, ensure proper thermal design and heat dissipation, and consider implementing a thermal monitoring and shutdown circuit to prevent overheating.
