Part Image

LCB110 - LITTELFUSE

Description: SSR RELAY SPST-NC 120MA 0-350V

Download LCB110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

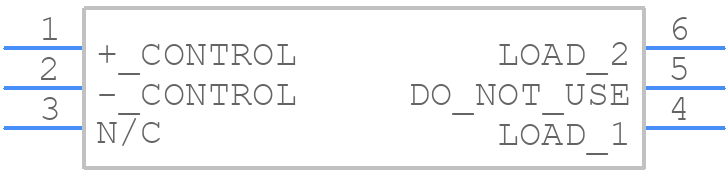

Symbol
LCB110 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCB110 - LITTELFUSE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6-Pin DIP
click to zoom
3D Models
LCB110 - LITTELFUSE - 3D model - Dual-In-Line Packages - 6-Pin DIP
click to zoom

LCB110 Details

  • Manufacturer Part Number:

    LCB110

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.74

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.005 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.005 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    8.382 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

LCB110 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LCB110 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source to minimize inductance. Additionally, it's recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
  • The LCB110 has built-in overvoltage protection (OVP) that can withstand voltage surges up to 3.5 times the nominal voltage rating. In the event of an overvoltage condition, the device will automatically disconnect the output to prevent damage to downstream components.
  • The LCB110 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated to prevent overheating and reduce the risk of thermal runaway.
  • The typical response time of the LCB110 to a fault condition is around 1-2 microseconds. This fast response time helps to minimize the risk of damage to downstream components in the event of a fault.
  • Yes, the LCB110 is designed to handle high-frequency switching applications up to 100 kHz. Its low capacitance and high-frequency immunity make it suitable for use in high-frequency power conversion systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCB110 Overview

Use the download button to access the LCB110 schematic symbol, PCB footprint, and 3D model.
