LCB710S - LITTELFUSE

Description: IXYS 1 A rms/A dc, 2 A dc SP-NC Solid State Relay, AC/DC, Surface Mount MOSFET

Download LCB710S Model

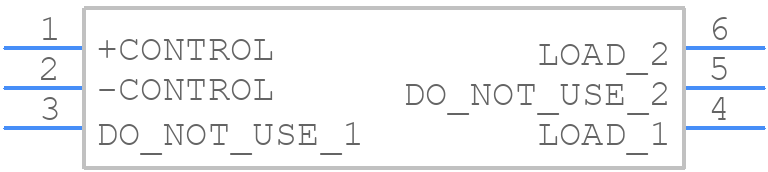

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCB710S - LITTELFUSE PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - LCB710S
click to zoom
3D Models
LCB710S - LITTELFUSE  - 3D model - SOT23 (6-Pin) - LCB710S
click to zoom

LCB710S Details

  • Manufacturer Part Number:

    LCB710S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.74

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.002 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    0.6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    8.382 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    YES

LCB710S Frequently Asked Questions (FAQs)

  • A good PCB layout for the LCB710S should ensure that the high-frequency signals are kept away from the low-frequency signals, and that the decoupling capacitors are placed close to the device. A 4-layer PCB with a solid ground plane is recommended. Additionally, the layout should minimize the loop area of the high-frequency signals to reduce EMI.
  • To select the correct fuse value, you need to consider the maximum inrush current, the steady-state current, and the fault current of your application. The fuse value should be high enough to allow for the inrush current, but low enough to protect the circuit from fault currents. You can use the fuse selection guide provided by Littelfuse or consult with their application engineers for assistance.
  • The LCB710S has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance and reliability.
  • The LCB710S is designed to withstand moderate vibration levels. However, if your application is subject to high vibration levels, you may need to take additional measures to ensure the device's reliability. This may include using a vibration-resistant mounting method, such as a screw-down or clip-in mounting, and ensuring that the PCB is properly secured to the chassis.
  • To troubleshoot issues with the LCB710S, start by checking the device's input and output voltages, as well as the current flowing through the device. Use an oscilloscope to check for any unusual voltage or current waveforms. Also, check the device's thermal performance and ensure that it is properly cooled. If the issue persists, consult the datasheet and application notes, or contact Littelfuse's technical support for assistance.
