The recommended PCB layout for the LCB717STR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source to minimize inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper cooling, it's recommended to provide adequate airflow around the device, use a heat sink if possible, and keep the device away from other heat-generating components. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
The LCB717STR can handle surge currents up to 100A for 8/20μs according to the IEC 61000-4-5 standard. However, it's recommended to consult the datasheet and application notes for specific guidance on surge current handling.
The LCB717STR is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's recommended to derate the device's current handling capability and consider using a heat sink or other cooling measures if operating in high-temperature environments.
To select the correct fuse value, consider the maximum current rating of the device, the expected inrush current, and the fault current of the system. It's recommended to consult the datasheet and application notes for guidance on fuse selection, and to perform thorough testing and validation of the chosen fuse value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCB717STR Overview

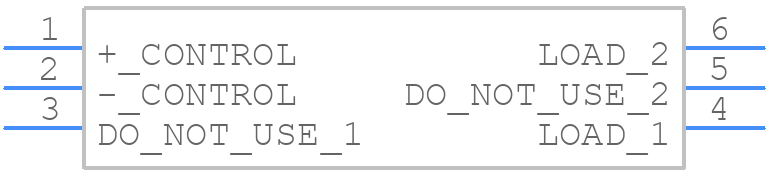

Use the download button to access the LCB717STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCB71,
or try a keyword search, such as Solid State Relays
