The recommended PCB layout for the LCC110 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The values of R1 and R2 depend on the desired output voltage and the input voltage range. A general rule of thumb is to choose R1 and R2 such that the ratio of R1 to R2 is equal to the ratio of the output voltage to the input voltage. For example, if the input voltage is 12V and the desired output voltage is 5V, R1 could be 2kΩ and R2 could be 1kΩ.
The LCC110 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
The LCC110 has built-in input voltage transient protection, which can withstand voltage transients up to 40V for 100ms. Additionally, the device has a high input impedance, which helps to reduce the impact of input voltage spikes on the output voltage.
Yes, the LCC110 is suitable for use in high-reliability applications due to its high reliability and ruggedness. The device has a high mean time between failures (MTBF) and is designed to meet the requirements of various industry standards, including AEC-Q100 and IEC 60601-1.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCC110 Overview

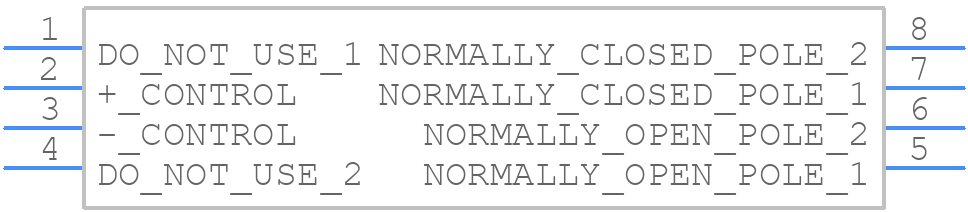

Use the download button to access the LCC110 schematic symbol, PCB footprint, and 3D model.
