LCC120STR - LITTELFUSE

Description: Solid State Relays - PCB Mount 1-Form-C 250V 170 mA Solid State Relay

Download LCC120STR Model

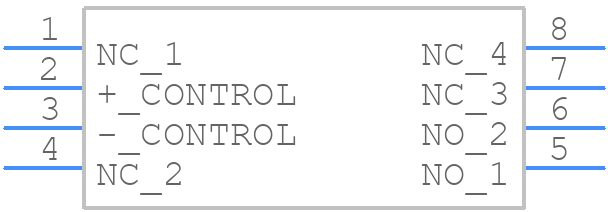

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LCC120STR - LITTELFUSE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LCC120
click to zoom
3D Models
LCC120STR - LITTELFUSE  - 3D model - Dual-In-Line Packages - LCC120
click to zoom

LCC120STR Details

  • Manufacturer Part Number:

    LCC120STR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    DUAL, SIMULTANEOUS OPERATION

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.17 A

  • On-state Resistance-Max:

    20 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    9.652 mm

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

LCC120STR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance of the LCC120STR includes a thermal pad on the bottom of the device, a solid copper pour on the top and bottom layers, and thermal vias connecting the top and bottom layers. This layout helps to dissipate heat efficiently and reduce thermal resistance.
  • To ensure the reliability of the LCC120STR in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a thermally conductive substrate and a heat sink if necessary.
  • The LCC120STR can withstand surge currents up to 100A for 8.3ms, as specified in the datasheet. However, it is recommended to consult with Littelfuse Inc or a qualified engineer to determine the suitability of the device for specific surge current requirements.
  • Yes, the LCC120STR can be used in parallel to increase the current rating, but it is essential to ensure that the devices are properly matched and that the PCB layout is designed to minimize current imbalance and thermal mismatch between the devices.
  • The recommended fuse type and rating for overcurrent protection of the LCC120STR depend on the specific application and operating conditions. However, as a general guideline, a fast-acting fuse with a rating of 1-2 times the maximum expected current is recommended. Consult with Littelfuse Inc or a qualified engineer for specific recommendations.
