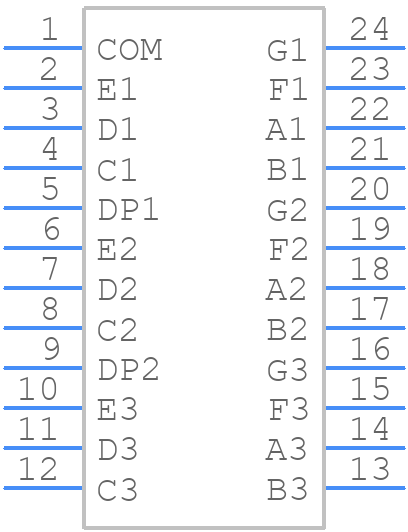

LCD-S301C31TR footprint, schematic symbol and 3D model by Lumex

Symbol

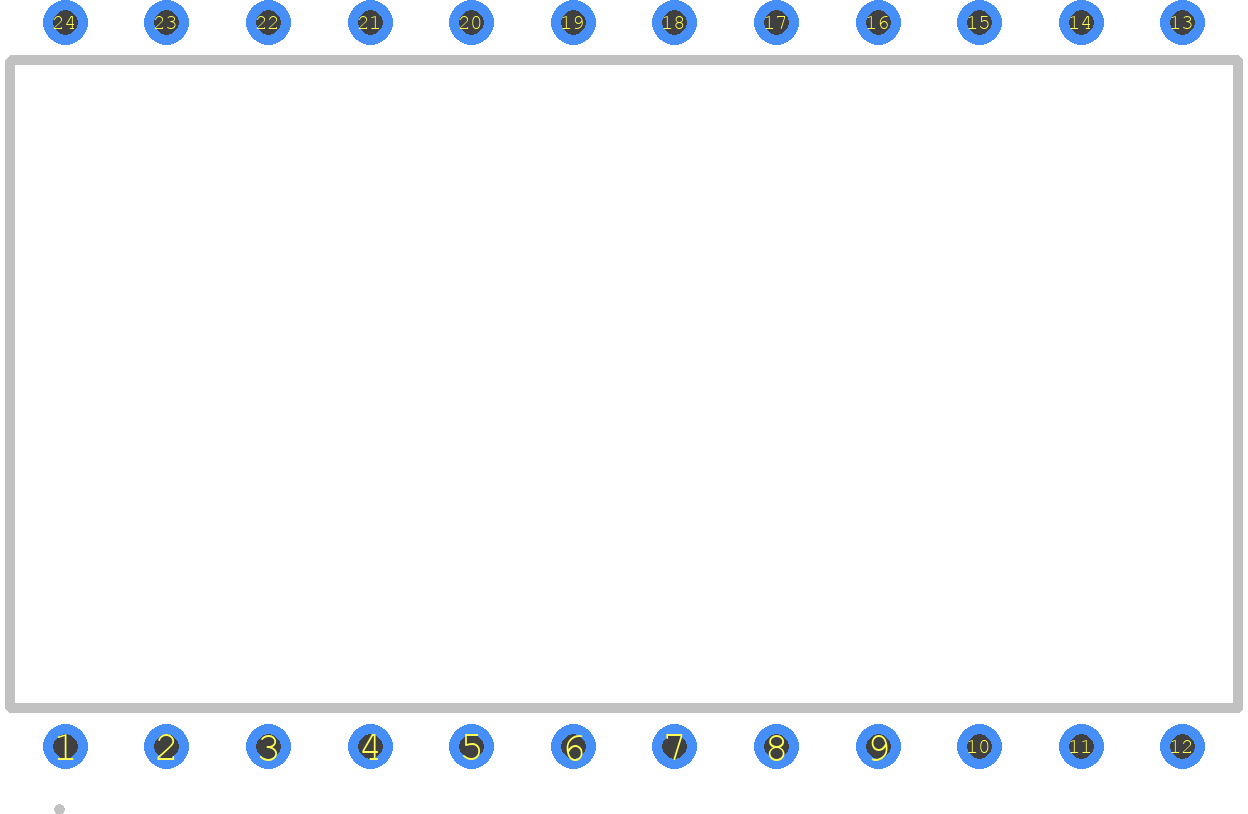

PCB Footprints

3D Models

LCD-S301C31TR Details

The recommended operating temperature range for the LCD-S301C31TR is -20°C to 70°C.
The LCD-S301C31TR uses a parallel interface, not SPI or I2C. It requires a 8-bit or 16-bit parallel data bus to communicate with the microcontroller.
The typical power consumption of the LCD-S301C31TR is around 200-300 μA, depending on the display mode and backlight usage.
The LCD-S301C31TR is not designed for high-humidity environments. It's recommended to use it in environments with a relative humidity of 60% or less.
The brightness of the backlight can be adjusted by applying a PWM signal to the backlight pin. The frequency of the PWM signal should be above 100 Hz to avoid flicker.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LCD-S301C31TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCD-S, or try a keyword search, such as LCD Displays
