LCD-S3X1C50TR/A - Lumex

Description: Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 30.48mm x 2.80mm

Download LCD-S3X1C50TR/A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

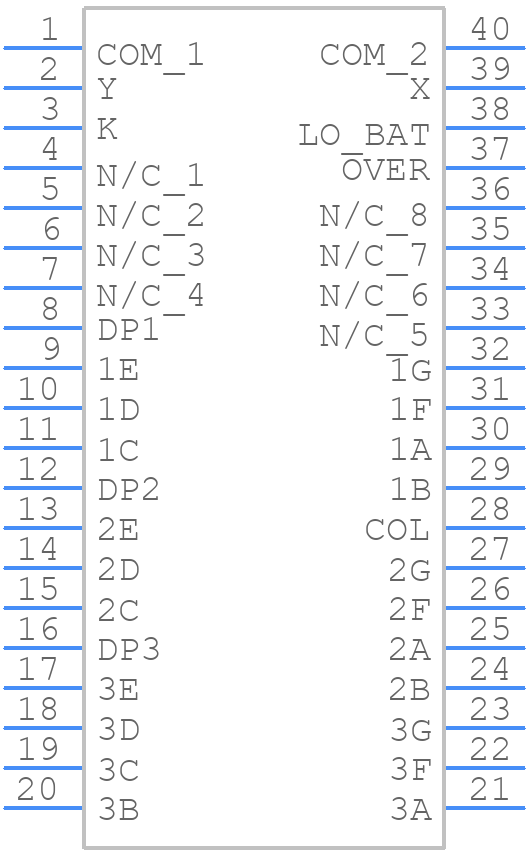

LCD-S3X1C50TR/A - Lumex - PCB symbol
click to zoom
PCB Footprints

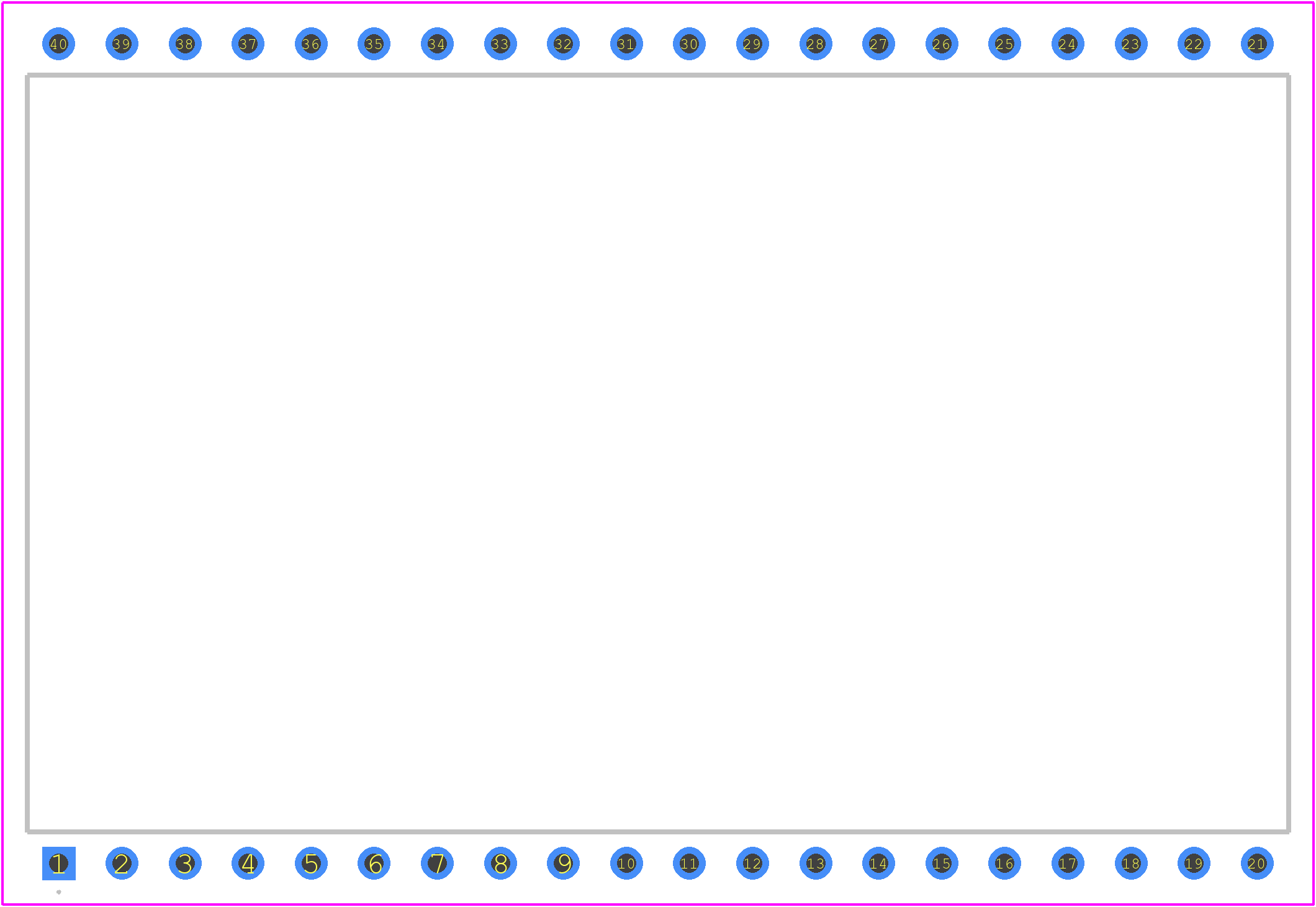

LCD-S3X1C50TR/A - Lumex PCB footprint - Other - Other - LCD-S3X1C50TR/A-5
click to zoom
3D Models
LCD-S3X1C50TR/A - Lumex - 3D model - Other - LCD-S3X1C50TR/A-5
click to zoom

LCD-S3X1C50TR/A Details

  • Manufacturer Part Number:

    LCD-S3X1C50TR/A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE PACKAGE-40

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Display Format:

    4 X 1

  • Display Height:

    12.7 mm

  • Fluid Type:

    TN

  • Number of Functions:

    4

  • Operating Temperature-Max:

    50 °C

  • Optoelectronic Device Type:

    ANALOG/DIGITAL CLOCK LCD DISPLAY

  • Packing Method:

    TR

  • Polarization Mode:

    REFLECTIVE

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    4 V

  • Viewing Area Height:

    17 mm

  • Viewing Area Length:

    46 mm

LCD-S3X1C50TR/A Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the LCD-S3X1C50TR/A is -20°C to 60°C (-4°F to 140°F).
  • Yes, the LCD-S3X1C50TR/A can be used in outdoor applications, but it may require additional protection against environmental factors such as UV, moisture, and extreme temperatures.
  • The typical response time of the LCD-S3X1C50TR/A is around 10-20 ms, but this can vary depending on the specific application and environmental conditions.
  • Yes, the LCD-S3X1C50TR/A is compatible with 5V logic, but it can also operate at 3.3V with some limitations on the brightness and contrast.
  • Yes, the LCD-S3X1C50TR/A can be used in high-vibration environments, but it may require additional mounting and mechanical design considerations to ensure reliable operation.
