LCD-S3X1C50TR/C footprint, schematic symbol and 3D model by Lumex

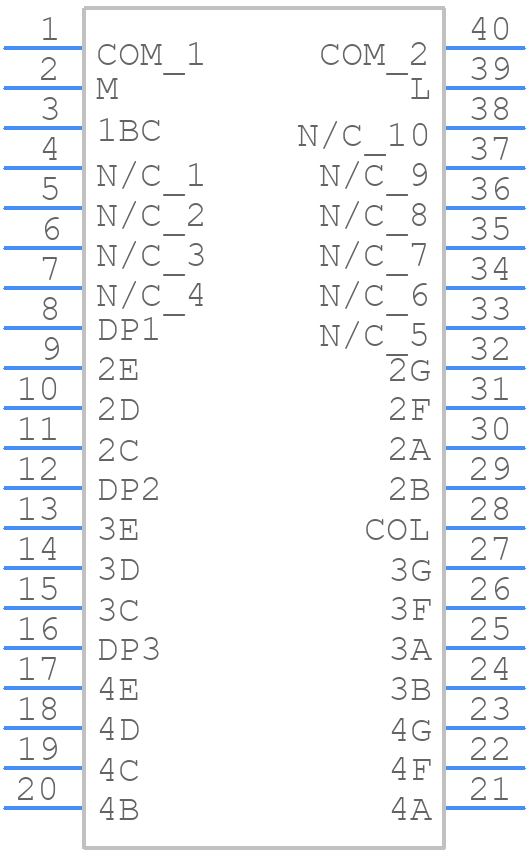

Symbol

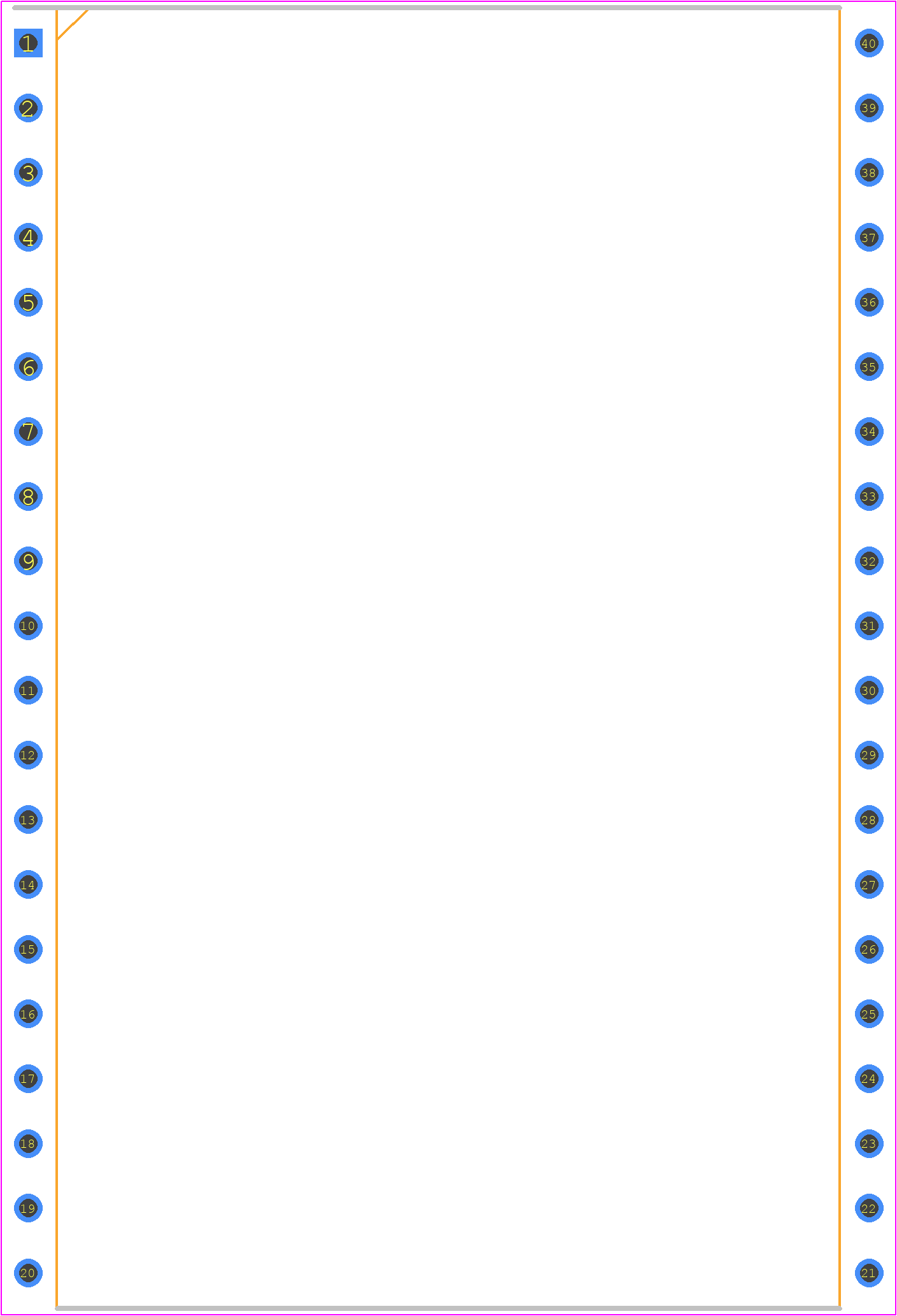

PCB Footprints

3D Models

LCD-S3X1C50TR/C Details

The recommended operating temperature for this display is between -20°C to 70°C.
The viewing angle for this display is 6 o'clock, which means the display is optimized for viewing from directly above.
The contrast ratio for this display is 6:1, which means the display can produce 6 times more brightness for the white pixels compared to the black pixels.
The response time for this display is 200ms, which means it takes 200 milliseconds for the display to switch from one image to another.
The display is compatible with most microcontrollers that support SPI or I2C interface. However, you need to check the specific interface and pinout of your microcontroller to ensure compatibility.

Community Provided

System Verified

Community Approved

Use the download button to access the LCD-S3X1C50TR/C schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCD-S, or try a keyword search, such as LCD Displays
