The recommended operating temperature range for the LCD-S401C39TF is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The LCD-S401C39TF uses a standard 6800-series parallel interface, with 8-bit or 16-bit data bus options. You can also use a serial interface with an optional serial-to-parallel converter.
The typical power consumption of the LCD-S401C39TF is around 1.5W, with a maximum power consumption of 2.5W. The display module also has a low-power mode that reduces power consumption to around 0.5W.
The LCD-S401C39TF is designed to operate in environments with relative humidity up to 90%. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or sealing the display module in a waterproof enclosure.
The LCD-S401C39TF has an external brightness control pin that allows you to adjust the brightness of the display using an external resistor or potentiometer. You can also use the display module's built-in brightness control function, which is accessible through the serial interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCD-S401C39TF Overview

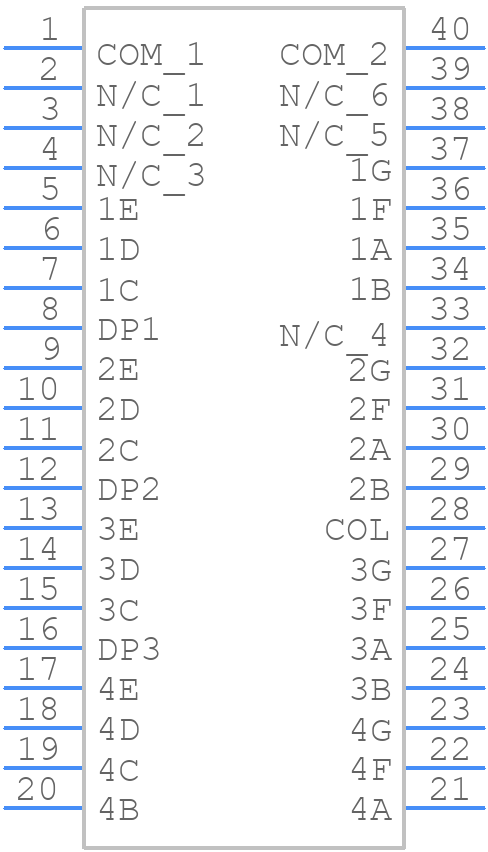

Use the download button to access the LCD-S401C39TF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCD-S,
or try a keyword search, such as LCD Displays
