LCD-S401C71TF-1 - Lumex

Description: LCD Numeric Display Modules 4 DIGIT .71" LCD NUMBERIC

Download LCD-S401C71TF-1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LCD-S401C71TF-1 model

Email notifications will be applied after download.

Send part feedback

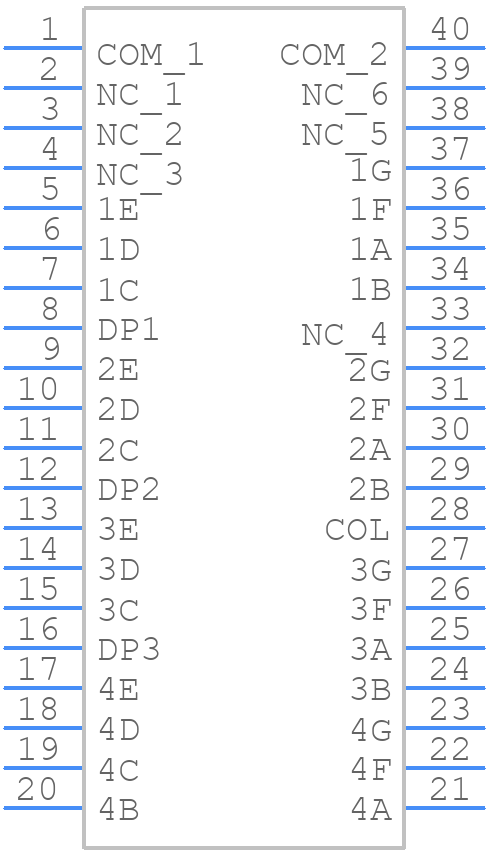

Symbol

LCD-S401C71TF-1 - Lumex - PCB symbol

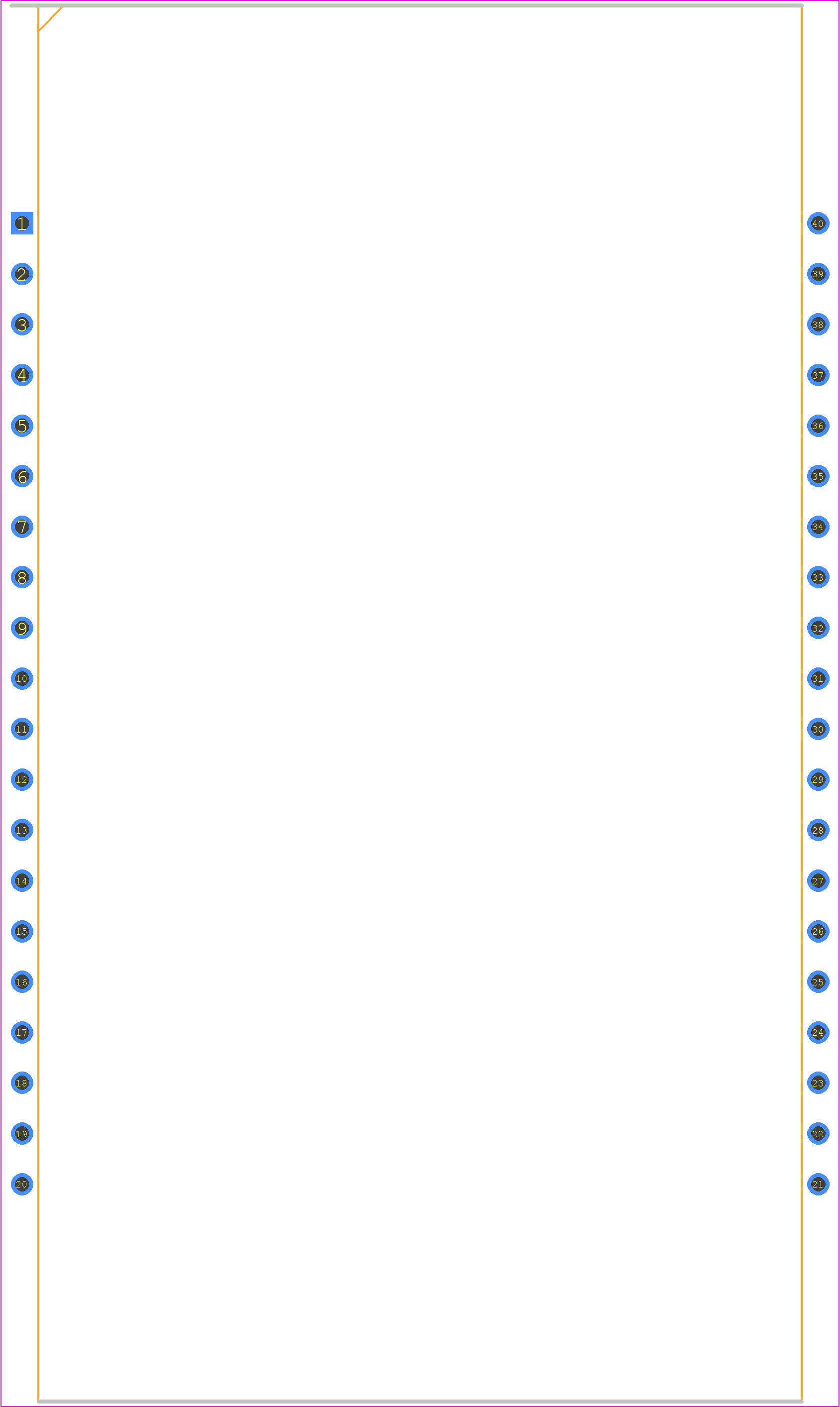

PCB Footprints

LCD-S401C71TF-1 - Lumex PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LCD-S401C71TF-1

3D Models

LCD-S401C71TF-1 - Lumex - 3D model - Dual-In-Line Packages - LCD-S401C71TF-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for LCD-S401C71TF-1
Part Number LCD-S401C71TF-1
Manufacturer Lumex
Pin Count 40
Part Category Display
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - LCD-S401C71TF-1
Released Date Dec 15, 2018
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

LCD-S401C71TF-1 Details

Manufacturer Part Number:
LCD-S401C71TF-1
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
Manufacturer:
ITW Lumex
YTEOL:
2
Display Height:
18 mm
Fluid Type:
TN
Operating Temperature-Max:
50 °C
Optoelectronic Device Type:
ANALOG/DIGITAL CLOCK LCD DISPLAY
Polarization Mode:
TRANSFLECTIVE
Supply Voltage-Nom:
5 V
Viewing Area Height:
23 mm
Viewing Area Length:
62 mm
