LCD-S401C71TR footprint, schematic symbol and 3D model by Lumex

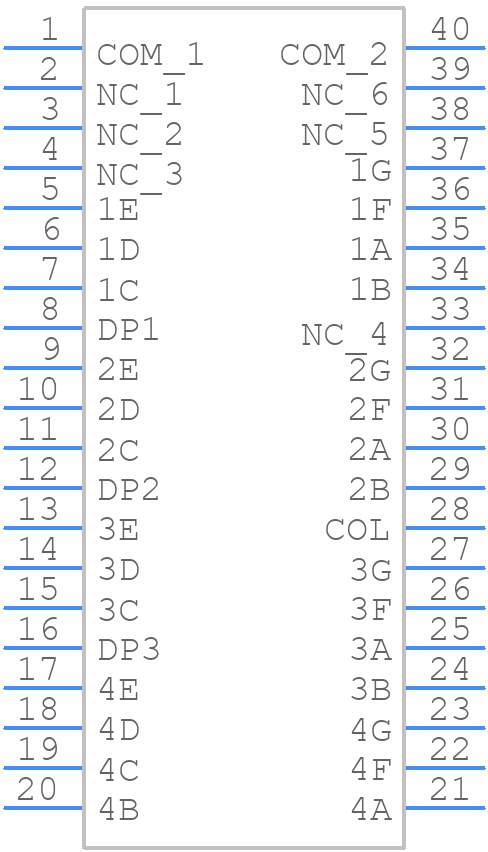

Symbol

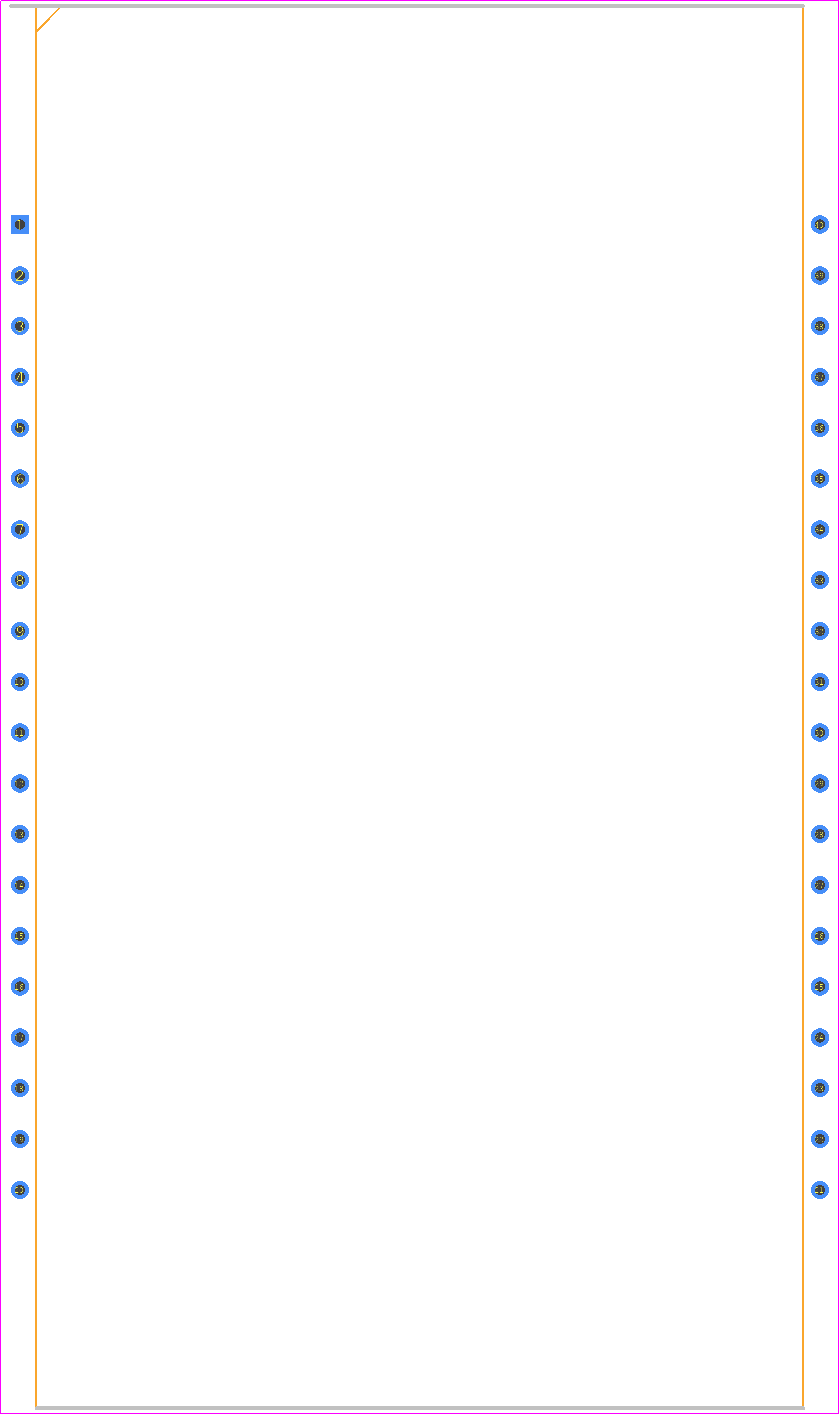

PCB Footprints

3D Models

LCD-S401C71TR Details

The recommended operating temperature range for the LCD-S401C71TR is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The LCD-S401C71TR can be interfaced with a microcontroller using a 4-bit or 8-bit parallel interface. The datasheet provides a detailed description of the interface protocol and pin connections.
The typical power consumption of the LCD-S401C71TR is around 2.5mA to 3.5mA, depending on the display mode and backlight usage.
The LCD-S401C71TR is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and encapsulation in high-humidity environments.
The backlight brightness of the LCD-S401C71TR can be adjusted by varying the voltage supplied to the backlight pins (BLK and BLA). The recommended backlight voltage range is 4.5V to 5.5V.

Community Provided

System Verified

Community Approved

Use the download button to access the LCD-S401C71TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCD-S, or try a keyword search, such as LCD Displays
